359
www.factoryfive.com 508-291-3443

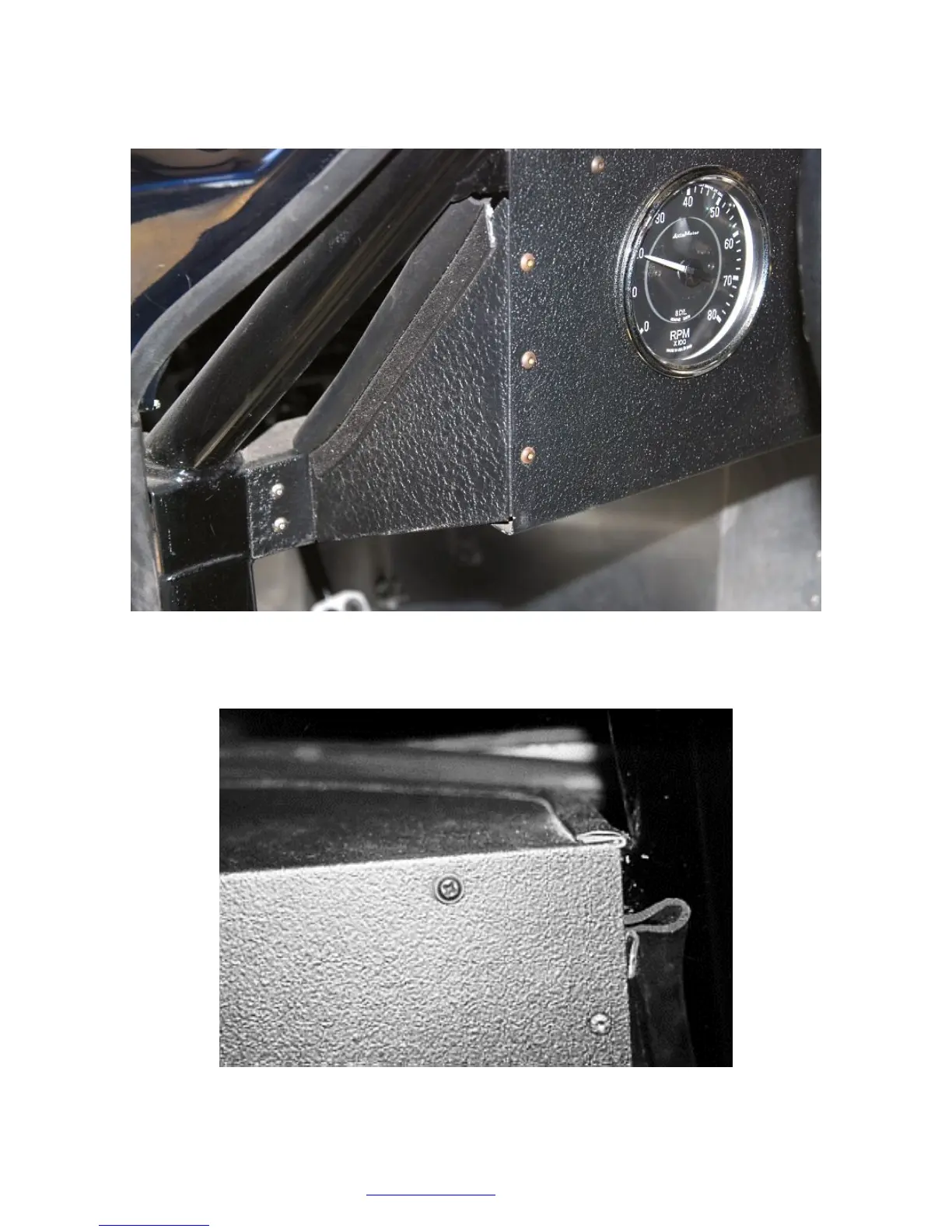

Position the dash in the cockpit. Mark four screw locations across the front face of the dash along the
top, for the mounting screws and two in each of the dash side pieces into the 2”x 2” tube.
Use the self-tapping #6 screws to screw the dash to the ¾”x ¾” dash support. The final mount screws
are the same size. The self-tapping ones create the threaded hole necessary for them.
Front dash mount screw.
