218
www.factoryfive.com 508-291-3443

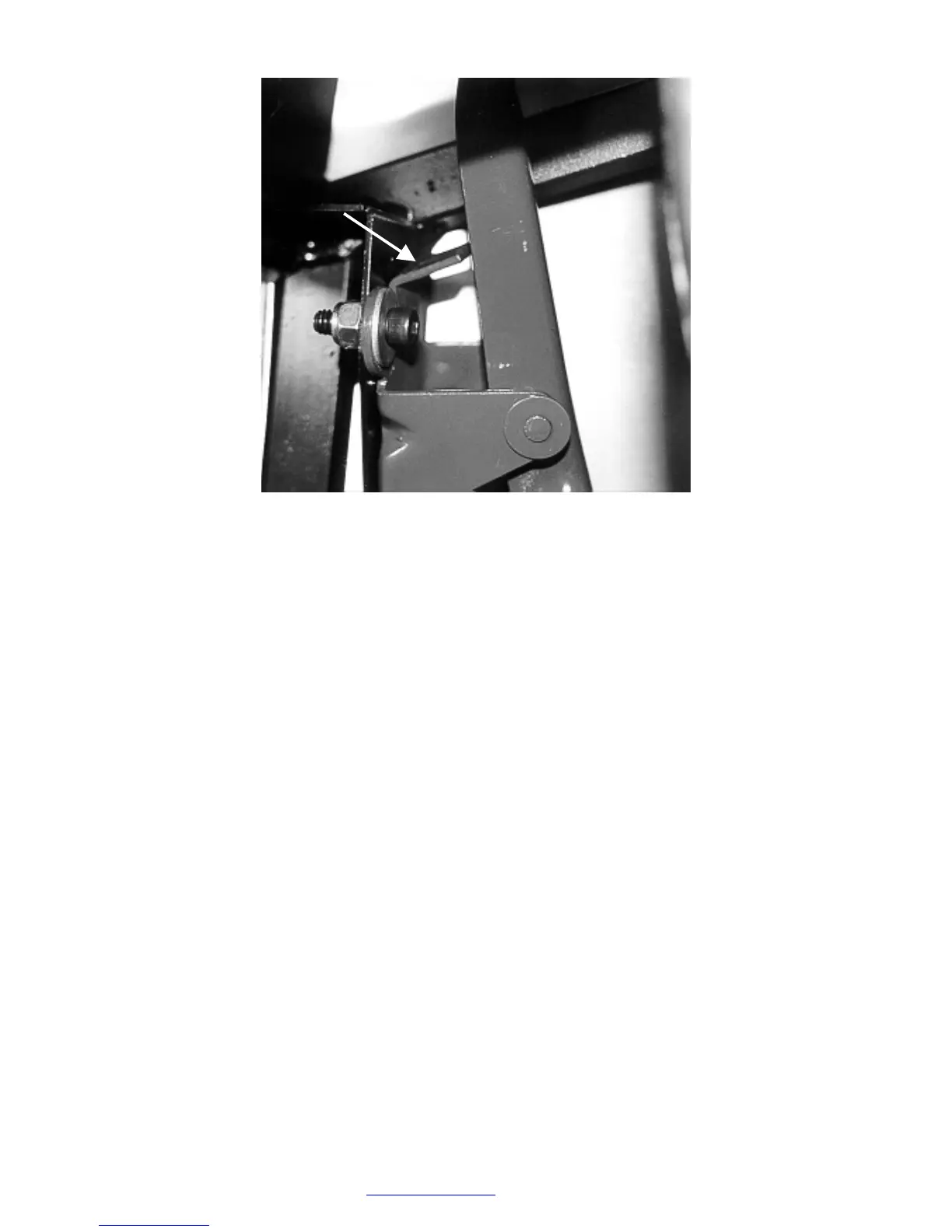

Stop tab on accelerator pedal.
After driving the car for the first time you may want to adjust the pedal locations for optimum heal/toe
and shoe size differences.
Make sure the accelerator cable is tied up and out of the way of moving or hot parts as well.
Carbureted applications
Attach the cable sheath to your cable mount on the engine.
If necessary, attach the supplied ball stud to the carburetor in the appropriate location. Refer to the
carburetor instructions for placement.
Attach the ball stud retainer to the ball stud.
Pull the cable tight holding the cable against the ball stud retainer. Align the ball stud retainer with the
cable as if the cable was going into the retainer.
Mark on the cable where the retainer ends.
Measure ⅜” from the mark towards the end of the cable and re-mark the cable.
Using a pair of wire cutters, cut the cable at the new location marked.
Push and twist the ball stud retainer onto the end of the cable. Do not tighten the set screw yet.
