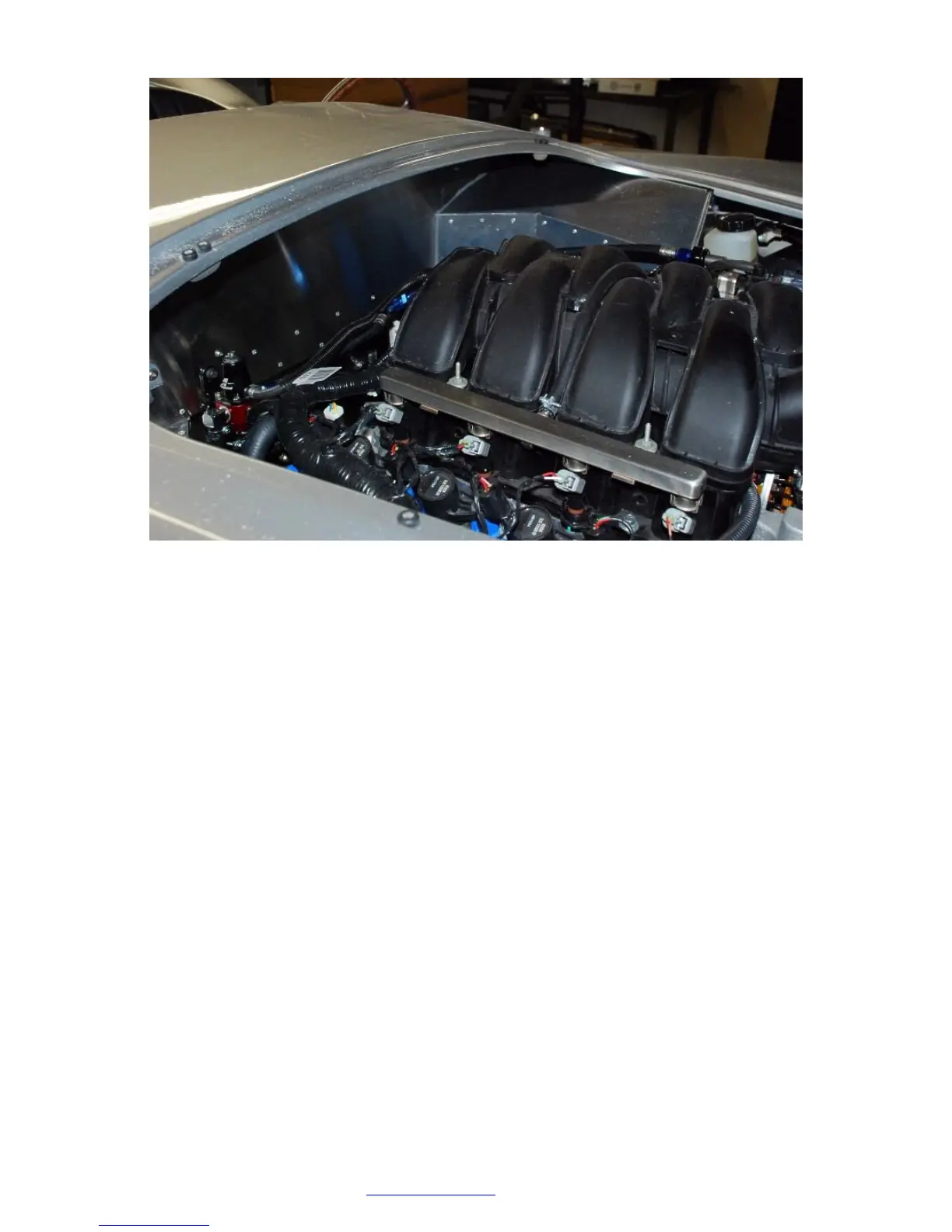

Re-Install the hood and latches.
Door final fit
½” deep socket, (2) 9/16” wrenches,
3
/
16
”,
5
/
16
” hex key, Phillips head screwdriver, masking tape.
Take your time to align the doors properly.
Hinge
Reattach the door hinge to the frame.
Attach the door frame to the door hinge using the fasteners provided.
Reattach the latch striker to the frame through the body.
Slowly close and engage the door latch.
Open the latch and swing the door frame open.
Door Weather-Stripping
Razor knife, tin snips.
Secondary body fasteners assembly.
There are two different types of weather stripping used around the doors. Use the push-on weather strip
with the bulb on the side around the top of the window.
The other weatherstrip looks like a double D with adhesive on the back. This should be pulled apart into
two D’s. This is used around the bottom of the door and the front.
