Side Windows
7
/
32
” drill bit, drill, ⅛” hex key,
5
/
16
” wrench, marker, hacksaw blade, Phillips head screwdriver.
Side window assembly, secondary body fasteners assembly.
The driver is different than the passenger side window, the driver side is
7
/
16
” shorter along the
bottom edge than the passenger side. Test fit the side windows with the protective covering on
to prevent scratching the plastic.
The flange around the door should measure ⅝” high. If necessary, trim the flange down to this height.
This will allow a tighter seal for the weather strip.
With the help of another person, hold the window frame along with the bottom channel section up to the
opening with the doors on and closed. The lower channel fits inside the outer frame so that the
mounting holes line up.
Move the side window frame so that the distance to the body at the top back, top front, front top and
front bottom is the same
3
/
16
”. The channel can flex a little to accommodate this. Make sure though that
the lower channel holes line up or the #10 screws can go through the mounting holes.
Mark the mounting holes for the window frame.

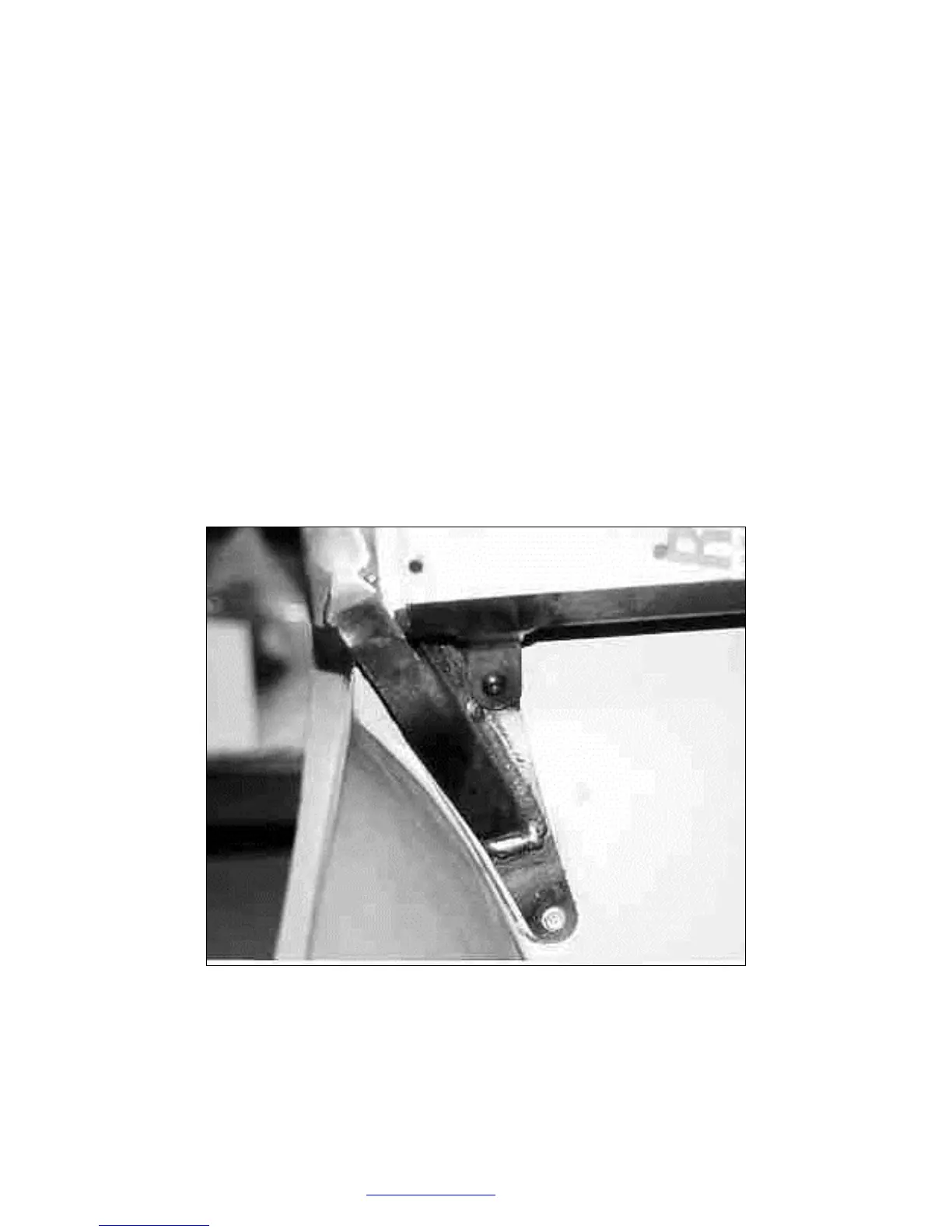

Rear window frame mount.
