Use a marker and ruler to mark the rivet holes on the aluminum panel.
Note where the panels touch each other and where they touch the frame. Remove the panels.
Apply silicone to the upper splash panels.
Install the upper splash panels with #6 screws.
Apply silicone to where the lower splash panels touch.
Install the lower splash panels with #6 screws.
Use
1
/
8
” drill bit and drill the rivet marks.

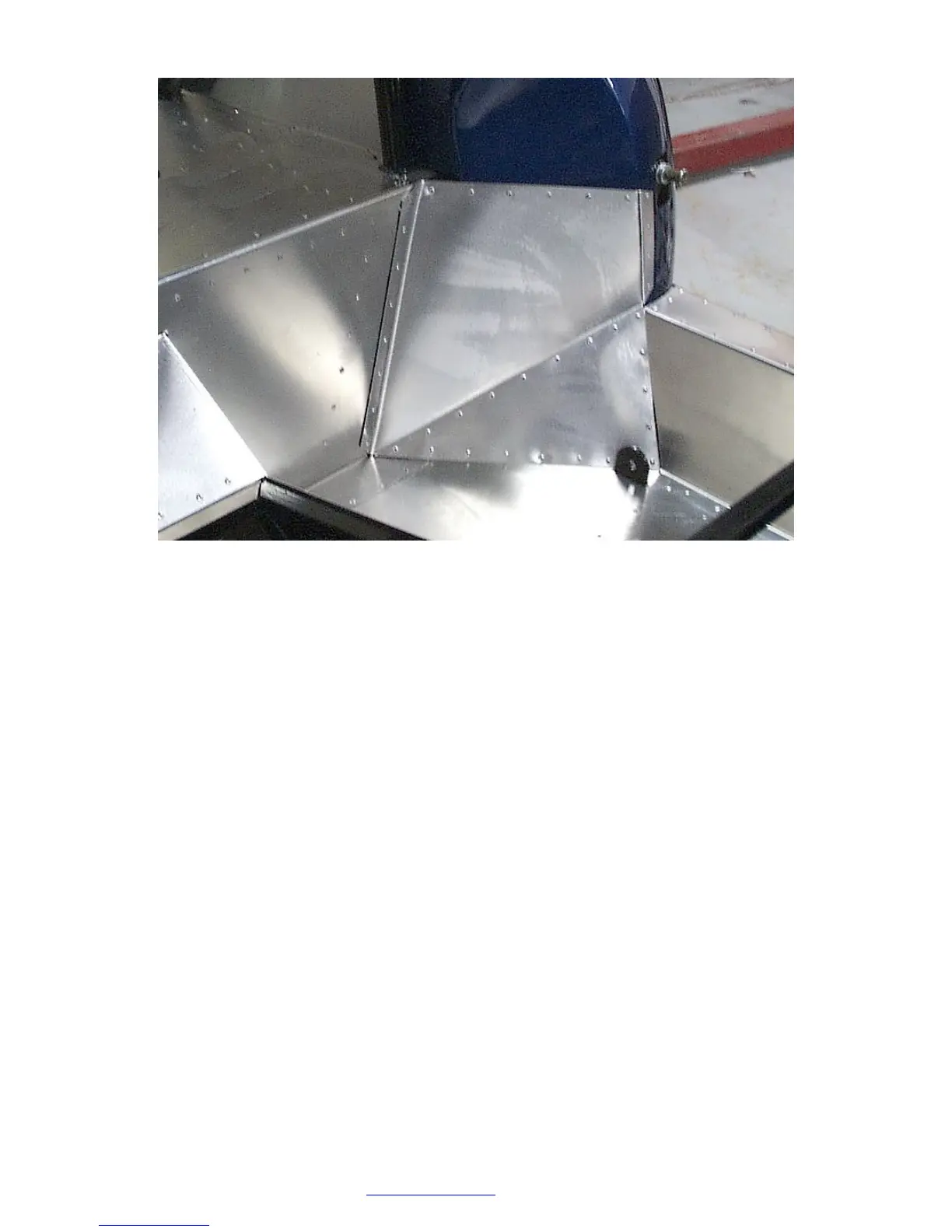

Rivet the panels in place with
1
/
8
” short or long rivets.
Headlight/Turn signal wiring
Wire strippers, wire crimpers, chassis harness instructions
Headlight components, amber front turn signal lights, misc. electrical components
Wire in the headlights to the chassis harness. The Mustang high beam is light green/black. The low
beam is red/black. On the headlight, there are three wires, black is ground, white is high beam and the
red is low beam.
Wire the turn signals up to the chassis harness.
