49
www.factoryfive.com 508-291-3443

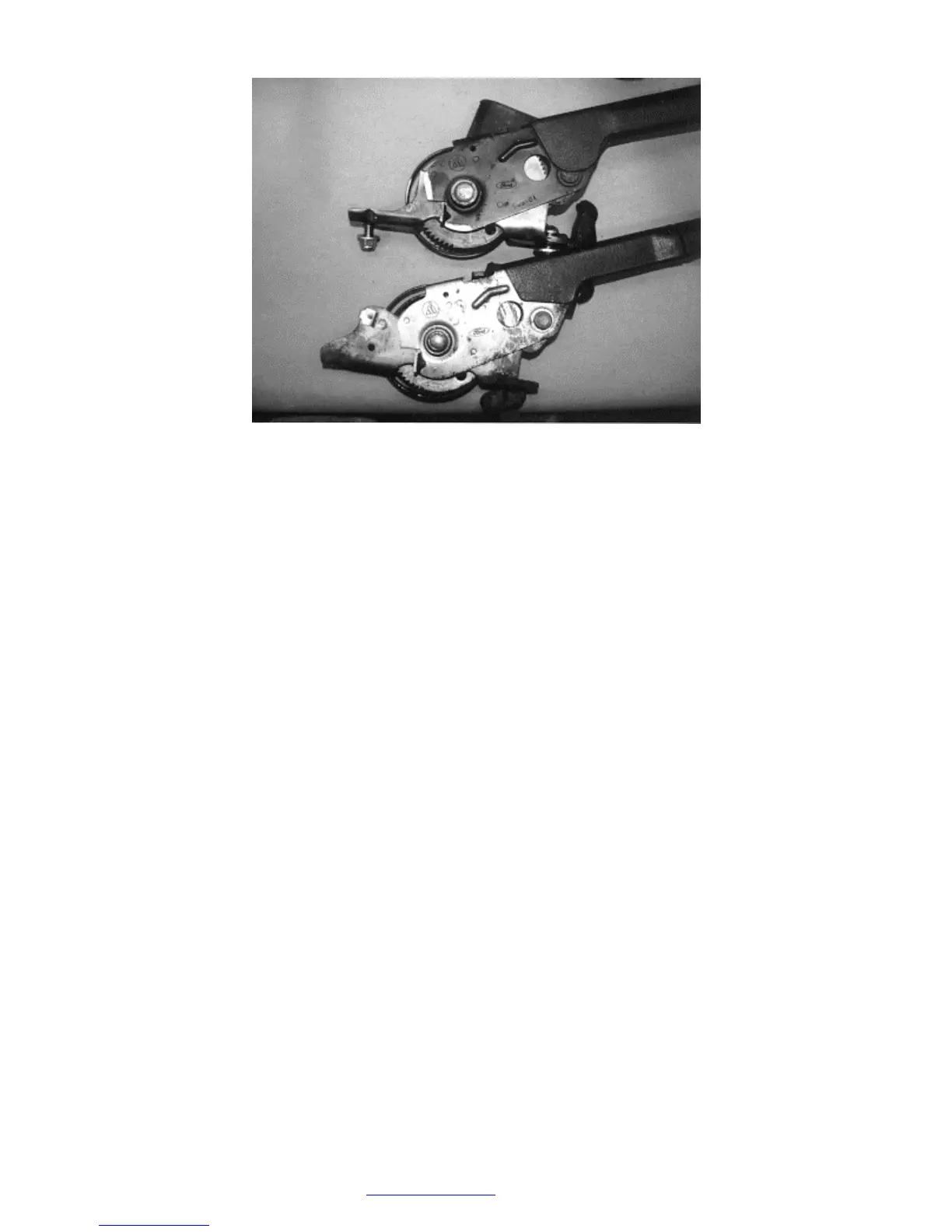

Top: Trimmed handle. Bottom: Untrimmed handle.
Trim the handle with grinder, it is very hard steel.
Alternate Drive Pulley Preparation
Cordless drill, ½” drill bit, needle nose pliers
Alternate drive pulley template
On 87-93 EFI cars, the pulley and fan belt supplied replace the A/C compressor and power
steering pump.
If you are planning on using under drive pulleys, do not use the template.
If you are planning on running power steering the alternate pulley is not needed. You will
however need the power steering mounting brackets for a non A/C car.
Remove the A/C and power steering pump. Use the alternate drive pulley template to prepare the
bracket for the pulley.
Use the template in appendix A to drill into the original Mustang A/C bracket. If you are choosing to
run either A/C or power steering, you do not need to use this alternate drive pulley assembly.
If you really want power steering on the car use the non-A/C power steering brackets from Ford to move
the power steering unit up out of the way of the steering shaft.
Steering Rack
11
/
16
” and ⅝” wrenches, ruler, hack saw, marker.
Remove the outer tie rods.
Cut 1.75” off the end of the inner tie rods.
If you are planning on running power steering this section is not needed.
