195
www.factoryfive.com 508-291-3443

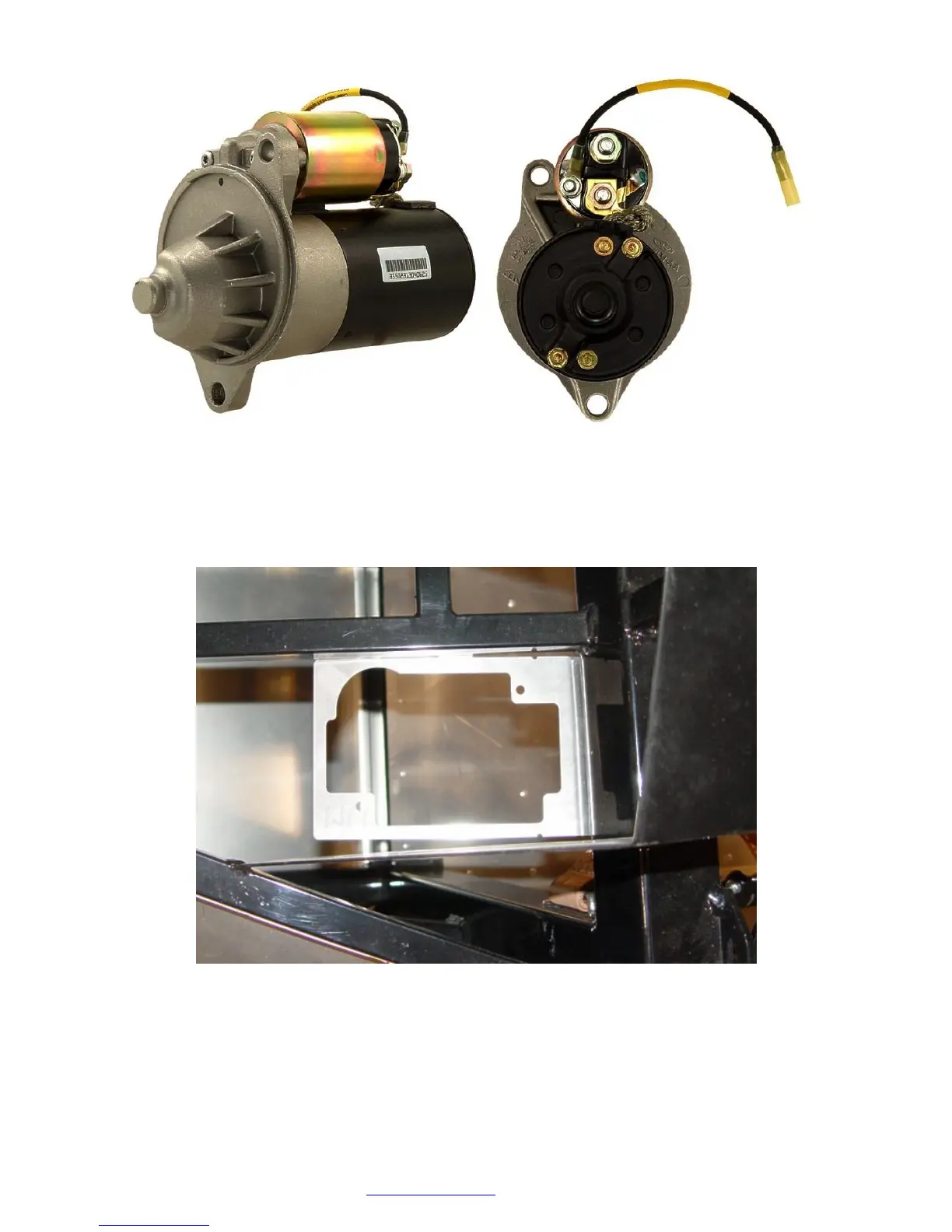

New Starter
When the wire harness is installed, mount the fuse panel (Use the diagram in Appendix A to determine
the correct shape) to the 2”x 2” dash hoop support and between the two ¾” x ¾” frame tubes in the
driver’s side footbox using the aluminum bracket provided and a few of the self-tapping screws.
Leave the headlight and hazard switches hanging for now.
Attach the harness across the 2”x 2” tube, using the insulated line clips.
