Mark the lower splash guard where it will touch the 1”x 1” tube for rivets.
Drill and rivet the lower splash guard to the tube using ⅛” rivets.

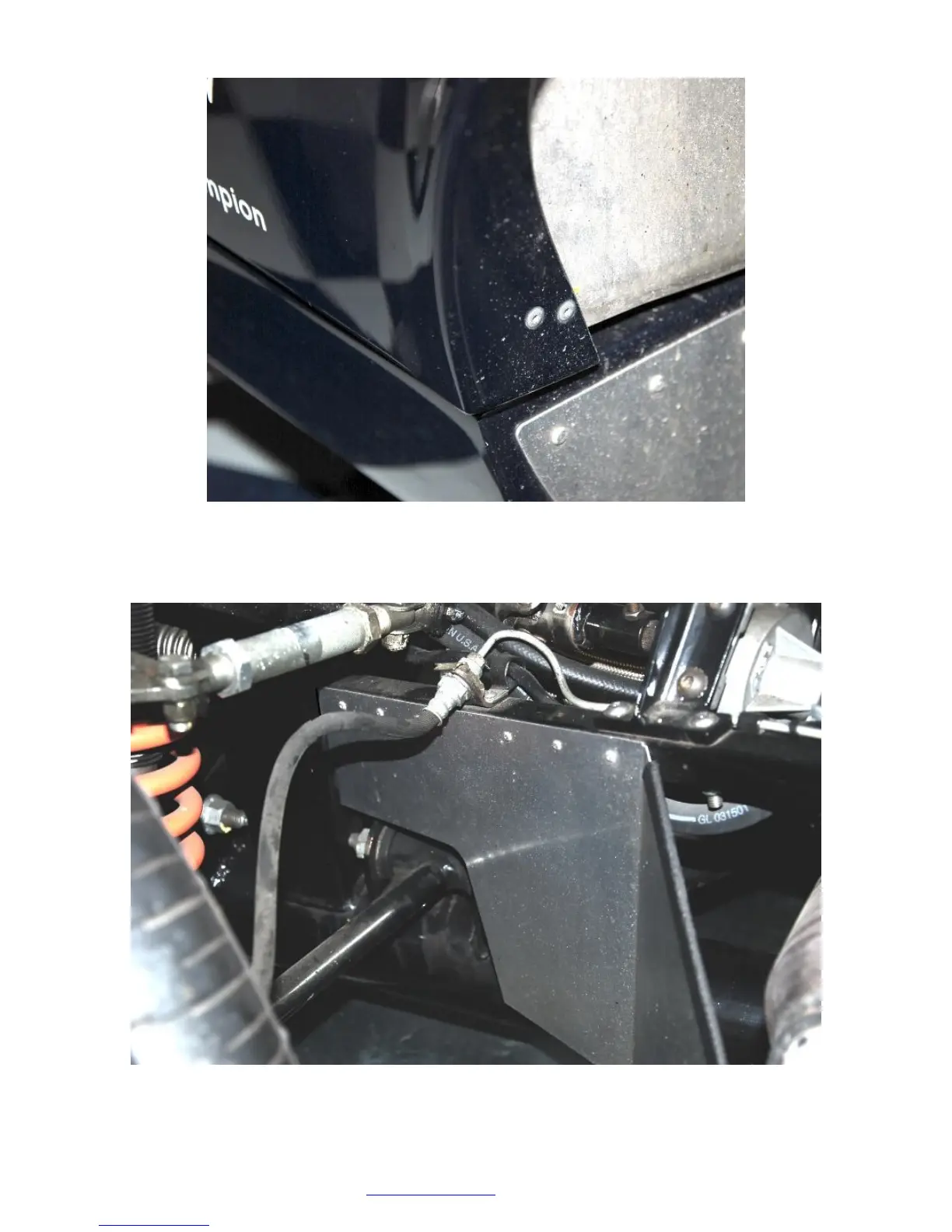

 The lower splash guard on the outside can either mount on the inside of the body or on the
outside of the body as shown below.
