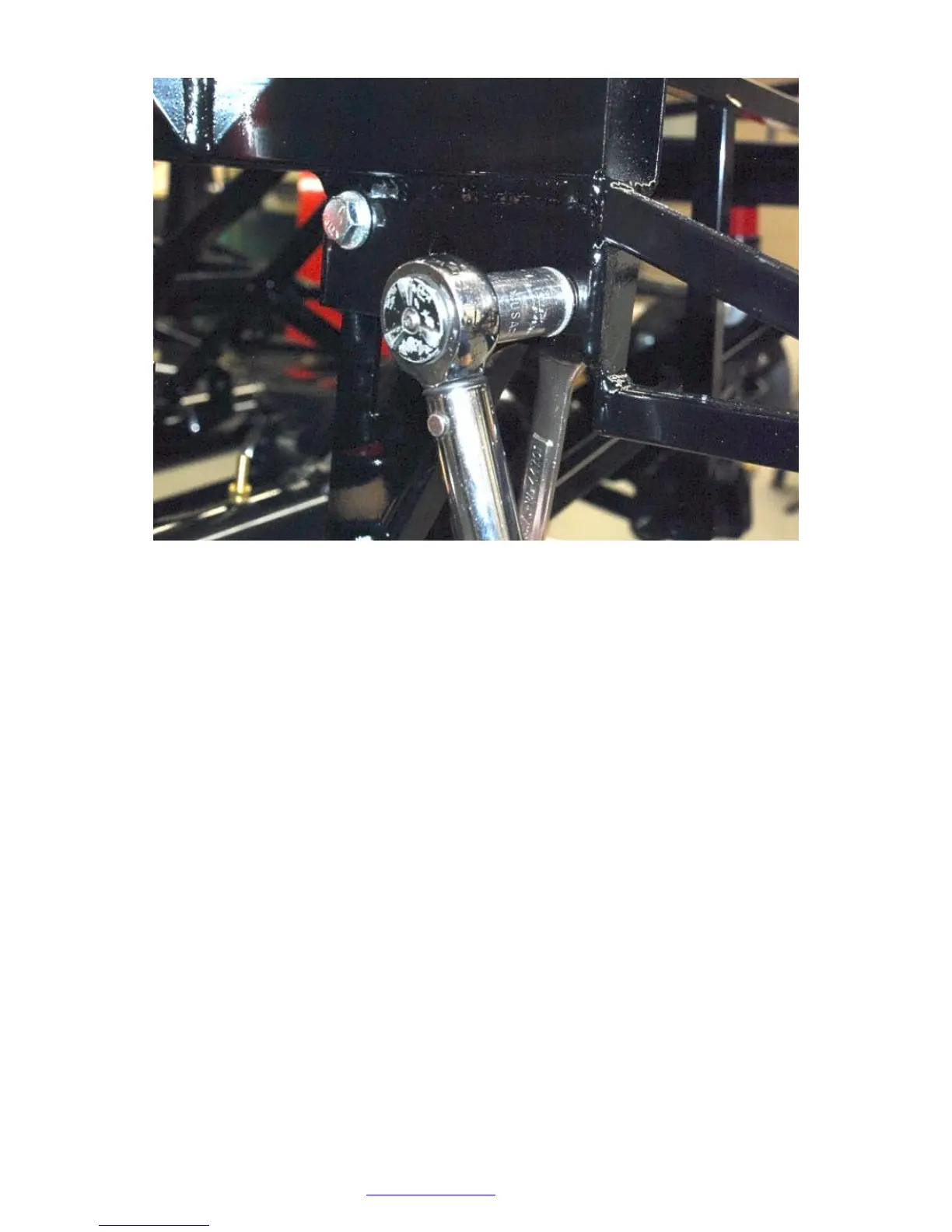

The Panhard bar mounts to the car using the ½” bolts and spacers. Install the Panhard bar to the
passenger side traction lock bracket. Three spacers are used in the front (2) 0.375" and (1) 0.25". The
rear uses the thin 0.125" shim. It will be necessary to adjust the length some to fit, make sure that you
adjust the same amount on both sides. There should never be less than ¾” of threads screwed into either
the Panhard bar or the upper arm.
