Screw the spring seat down on the sleeve so it is closer to the unthreaded end. The center high part of
the set should be pointed away from the unthreaded end.

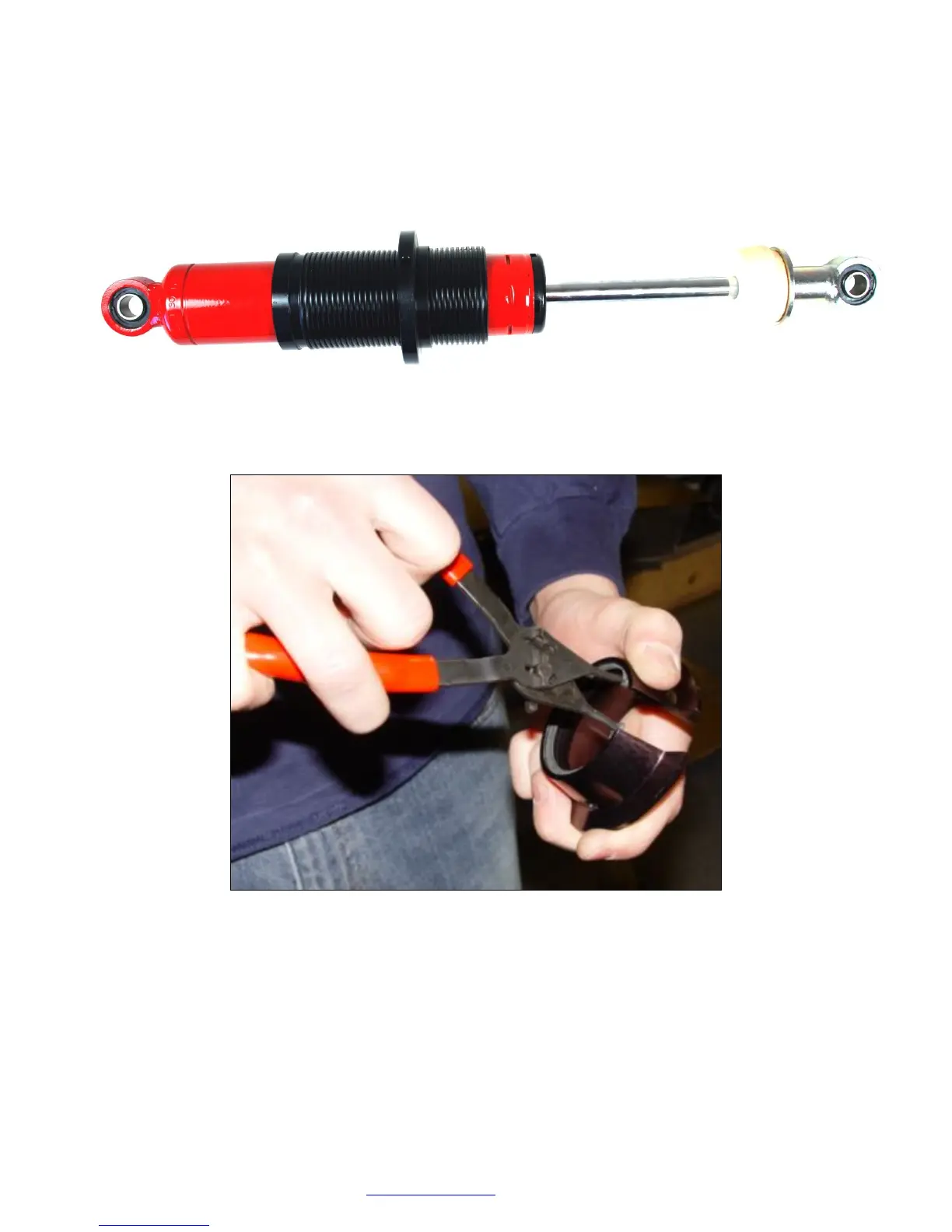

Slide the coil sleeve over the body of the damper beginning at the end which has the rubber bump stop.
The unthreaded end of the sleeve goes first so that it will sit on the snap ring on the shock body.
The coil-over hats have a snap ring which holds it in place. Remove this snap ring to assemble the coil
over shock.
Slide the rubber bumper about two inches down on the shaft.
