Put locktite on the
5
/
16
” bolt threads.

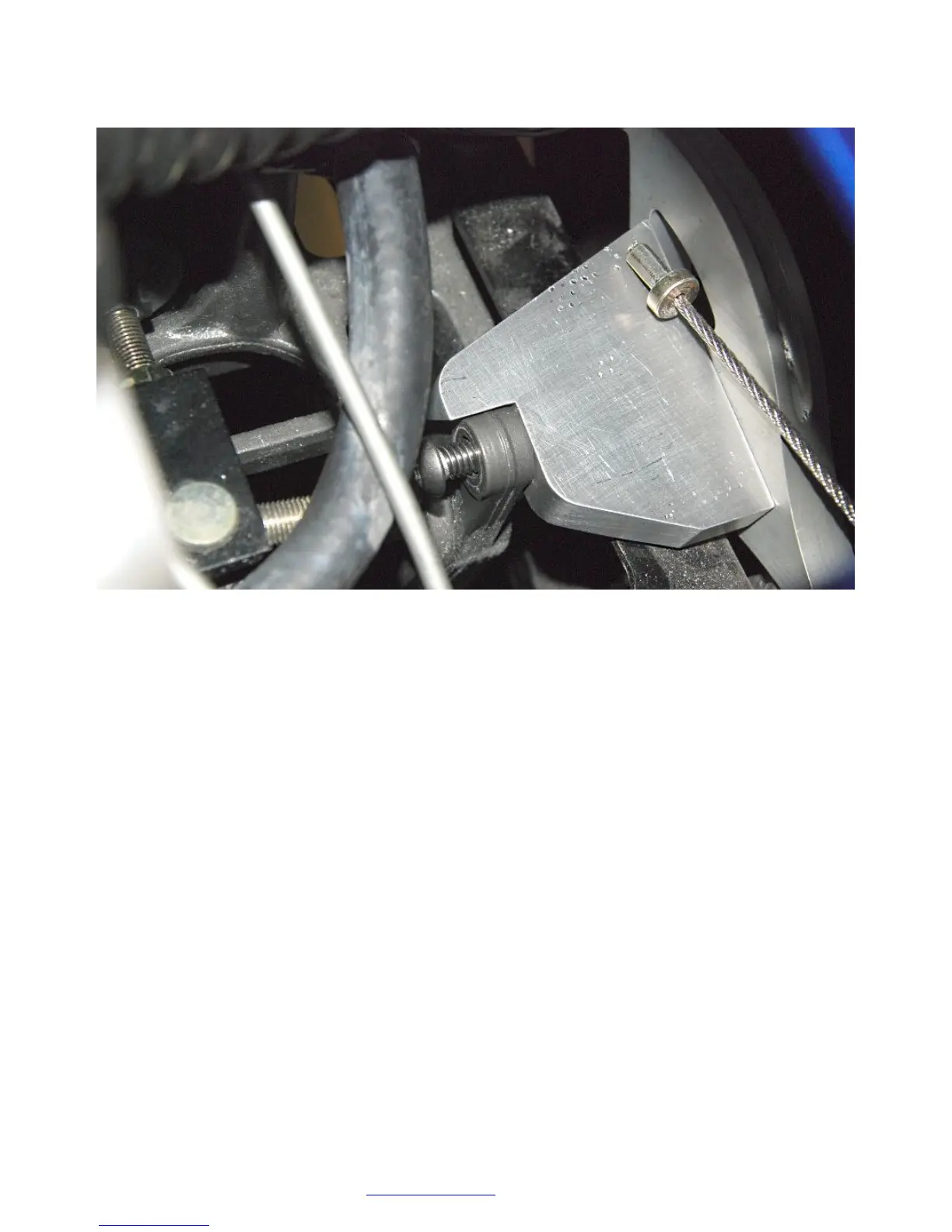

Insert the
5
/
16
” bolt through the clutch pedal and thread into the actuator.
Snug up the bolt using a
3
/
16
” hex key.
 This
5
/
16
” bolt is only used to hold the pedal in position when the pedal is not being pushed
depending on the pedal height. It does not put any pressure on the pedal.
 Check that the clutch moves freely and does not contact the stud. If needed file the top of the
stud down for clearance.
