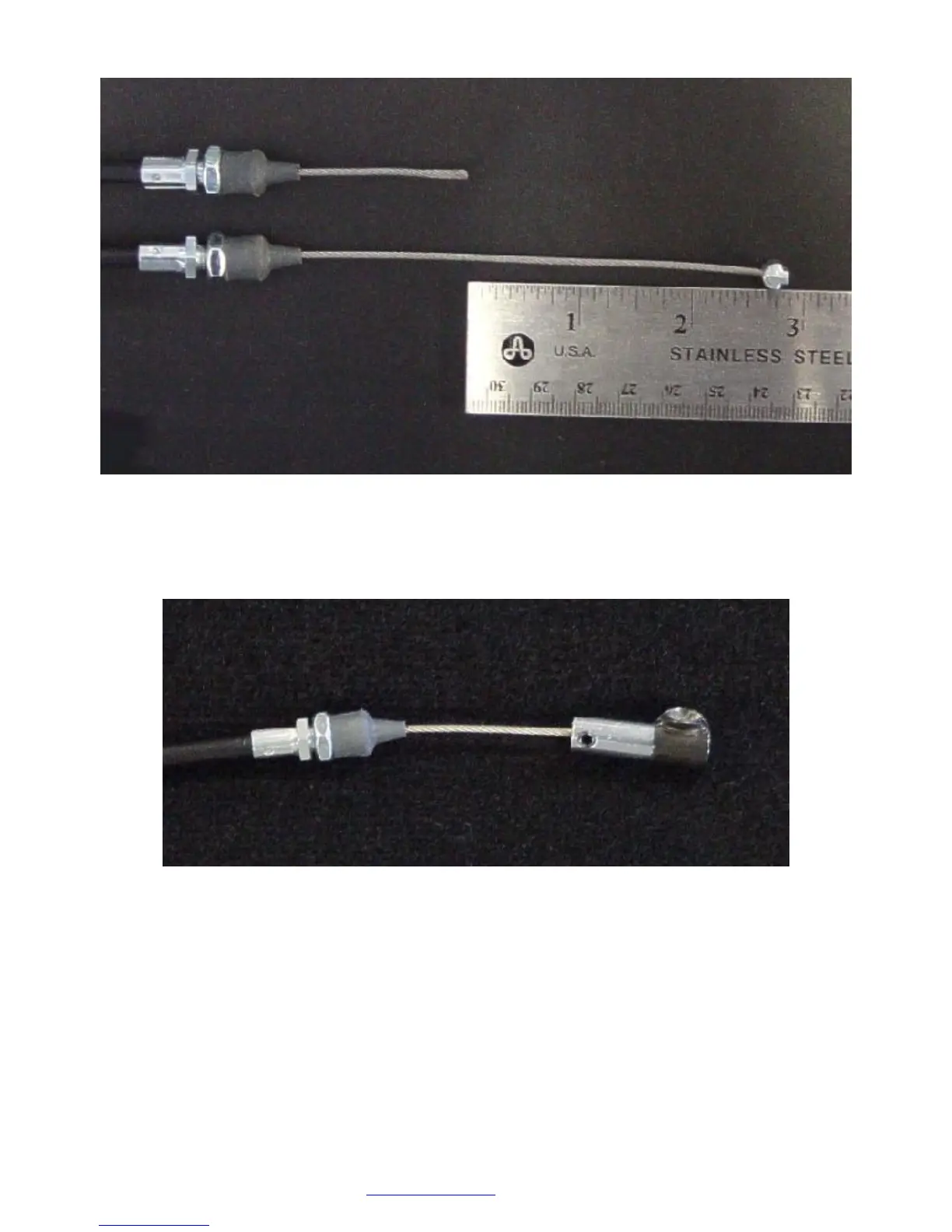

Using a pair of wire cutters, cut the cable at the location marked.
Remove and discard the included ball stud. It is for carbureted applications
Push and twist the included ball stud retainer onto the end of the cable. Do not tighten the set screw yet.
Insert the pedal end of the cable into the foot box.
Screw on and tighten the
5
/
16
” locknut on the cable sheath inside the foot box using two ½” wrenches.
