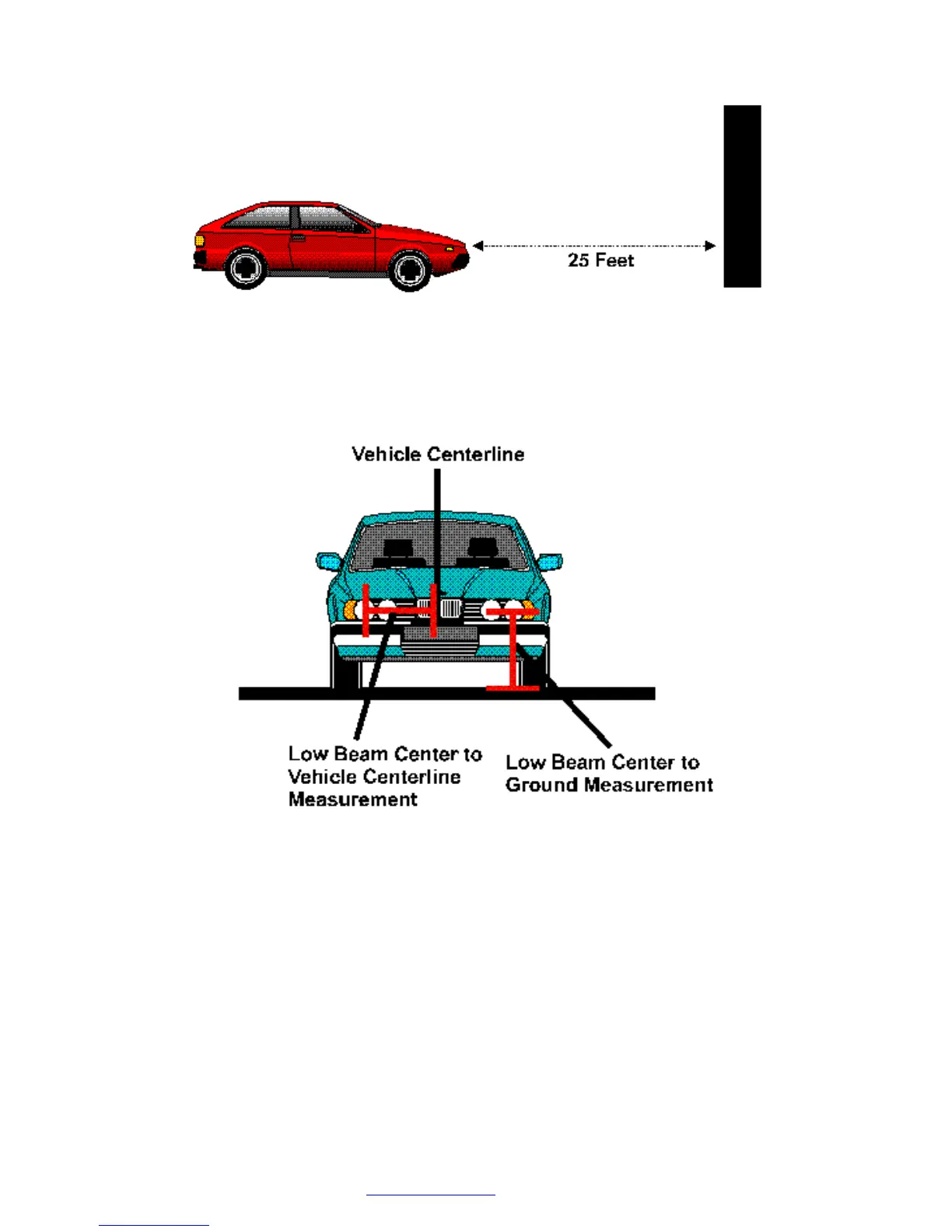

Make the following two measurements:
Measurement A: From the ground to the geometric center of one of the headlight lenses
Measurement B: From one of the low beam headlights to the vehicle centerline.
(Also measure from high beam center to vehicle centerline for 4 headlight systems)
Note these measurements.
On a piece of masking tape, draw one horizontal line on the wall at a height exactly 2 inches lower than
Measurement A.
On the line, make vertical marks both to the right and left of the vehicle centerline mark at the distance
of Measurement B from the vehicle centerline vertical line.
