4. Commissioning
4−3
Festo P.BE−CPX−SYS−EN en 0902e
4.1 Procedure for commissioning
In order to avoid connecting errors and addressing errors,
you should carry out commissioning in steps as follows.
The individual commissioning steps are shown in Fig.4/1.
1
2
3

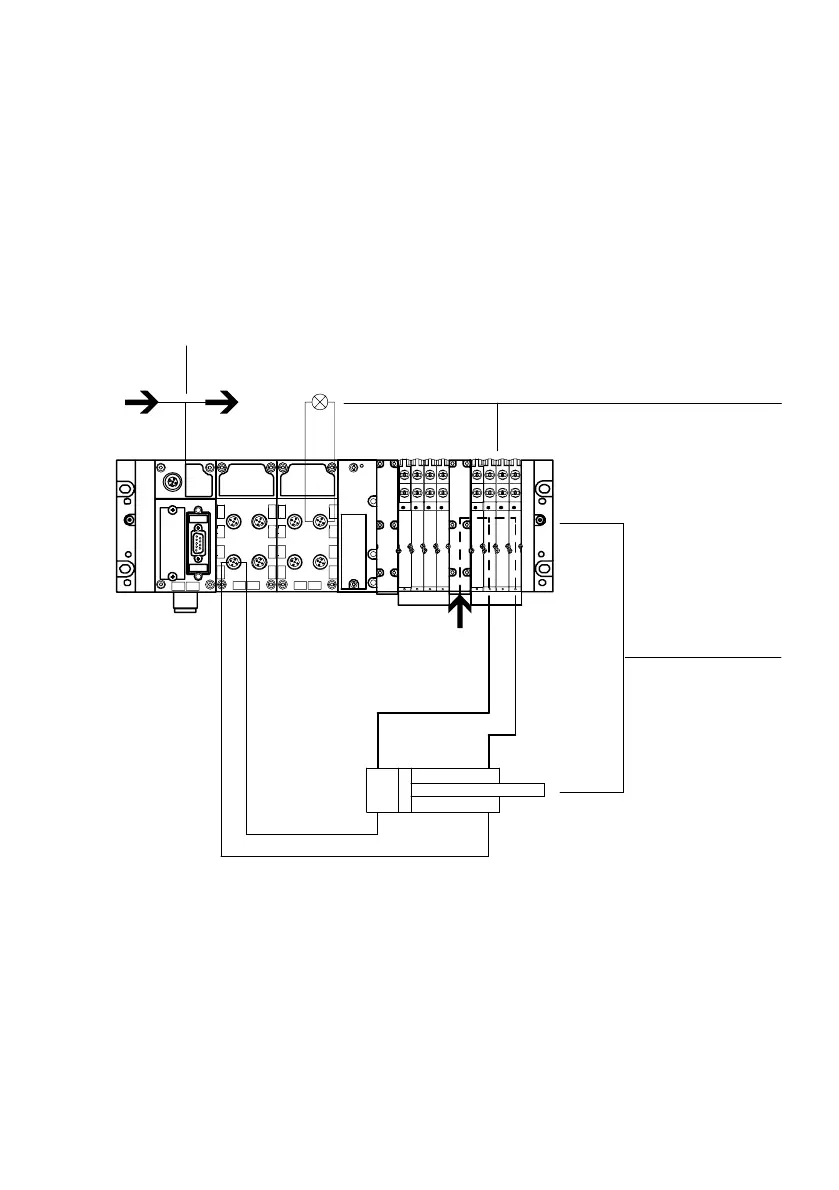

1 Step 1 Checking the valve/cylinder combinations (see manual for the specific
pneumatics)
2 Step 2 Checking the I/O assignment
3 Step 3 Commissioning the CPX terminal on the fieldbus and checking the
address assignment, if necessary, without connected actuators by means of
LED (see manual for the specific CPX bus node)
Fig.4/1: Commissioning steps
