2. Assembly
2−23
Festo P.BE−CPX−SYS−EN en 0902e

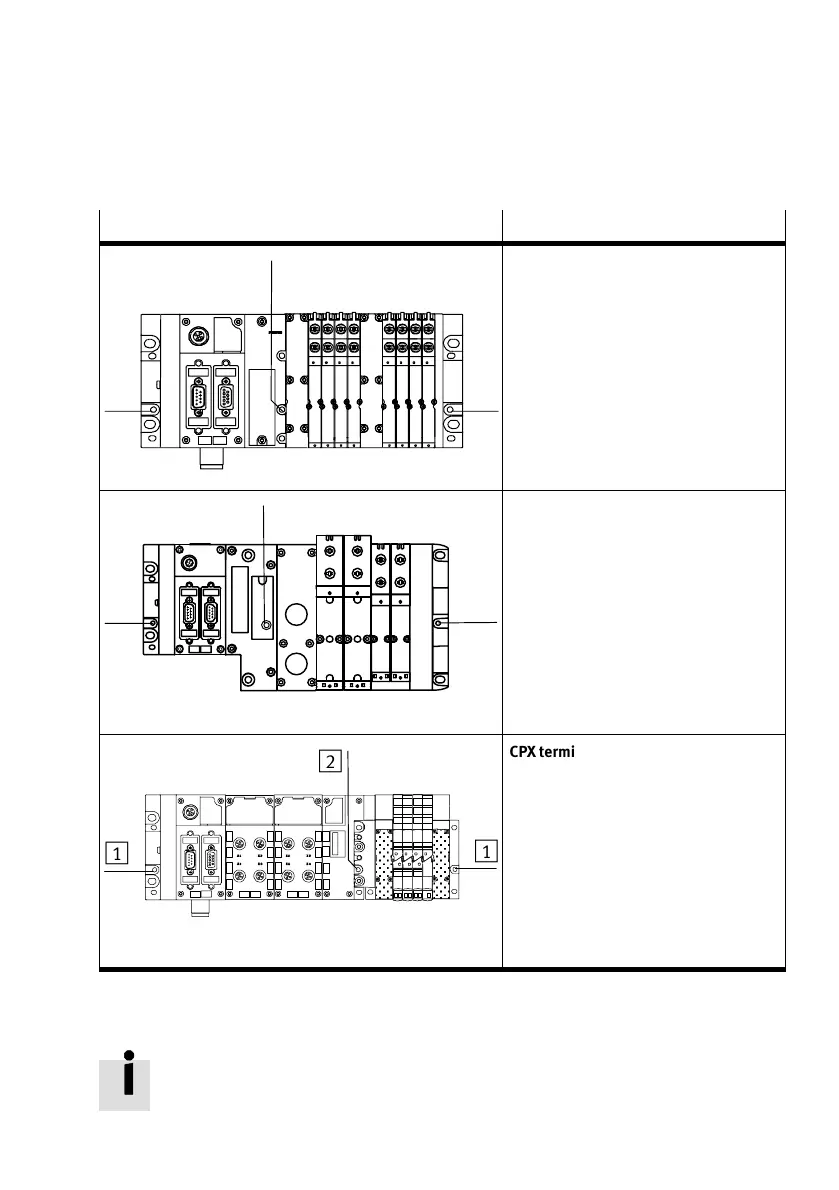

Variant Mounting points
1
2
1
CPX terminal with MPA pneumatics
Required mounting of the H−rail clamp
ing units:
In the end plates:
each with one M4 screw 1
In the pneumatic interface:
with an M4 screw 2
1
1
2
CPX terminal with VTSA pneumatics
Required mounting of the H−rail clamp
ing units:
In the end plates:
each with one M4 screw 1
In the pneumatic interface:
with an M4 screw 2
1
2
1
CPX terminal with CPA pneumatics
Required mounting of the H−rail clamp
ing units:
In the end plates:
each with one M4 screw 1
In the pneumatic interface:
with an M4 screw 2
Tab.2/3: Required mounting points for H−rail mounting
For information about H−rail mounting of CPX terminals with
Midi/Maxi pneumatics, see section 2.4.3.
