Festo CPX - Fitting the End Plates with MIDI;Maxi Pneumatics

2. Assembly
2−16
Festo P.BE−CPX−SYS−EN en 0902e
2
3
4
1
5
5
1 Seal
2 Pre−assembled earth cable
3 Fastening screws approx.1Nm
4 Contact for earth cable
5 With wall mounting: use spacer
discs(4x)

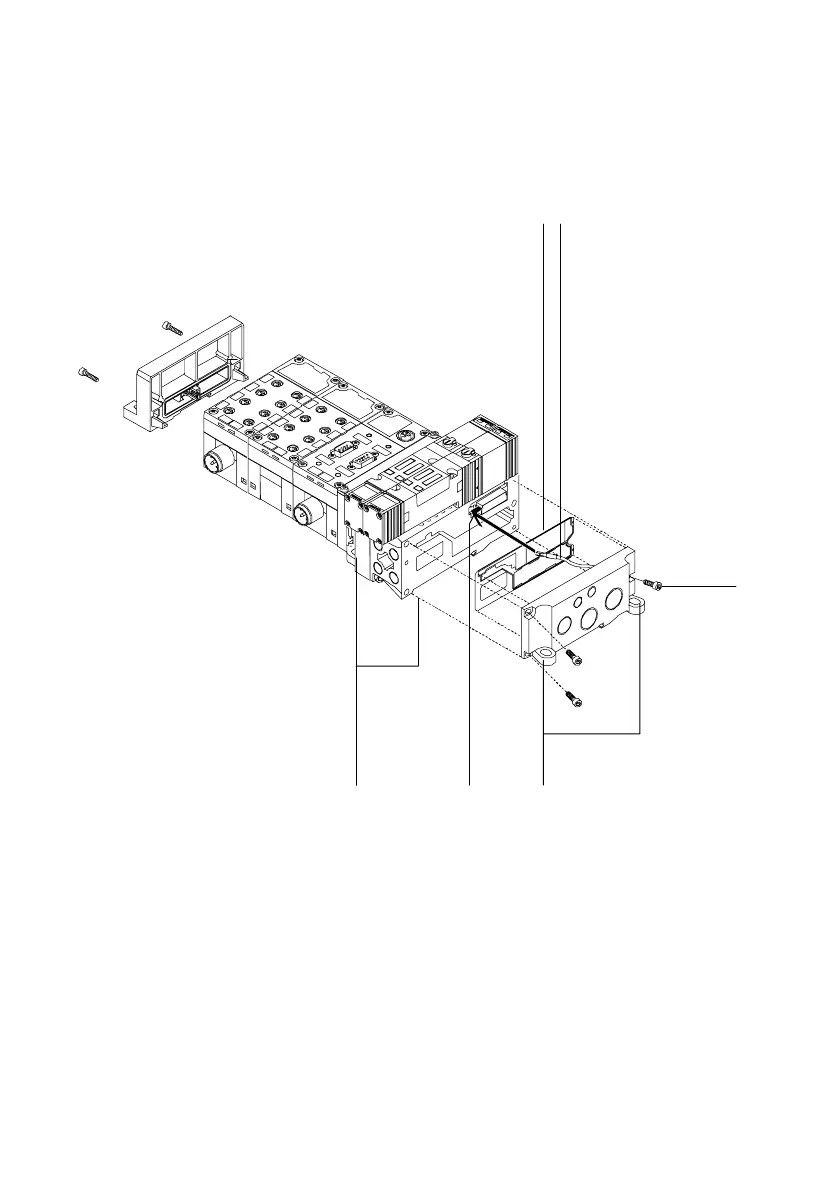

Fig.2/8: Fitting the end plates with Midi/Maxi pneumatics
