Festo CPX - CPX Terminal with CPA Pneumatics; Valve Terminal Pneumatics of Type CPA

1. Overview of components
1−16
Festo P.BE−CPX−SYS−EN en 0902e
Valve terminal pneumatics of type CPA
Valve terminal pneumatics of type CPA are distinguished by
compact exterior dimensions in proportion to the high flow
rates. They have replaceable valve plates that are mounted
on sub−bases. The sub−bases are connected mechanically by
tie rods and have an end plate at the side. Valve plates are
available in different sizes.
The valve
positions can be configured in single steps from 2
to 22valve positions.
1 Pneumatic
interface for CPA
(here CPA10)
2 Valve terminal
pneumatics of
type CPA
3 End plates
4 Valve plates (here
CPA10)
ÌÌ
ÌÌ
ÌÌ
ÌÌ
ÌÌ
ÌÌ
ÌÌ
ÌÌ
12
343

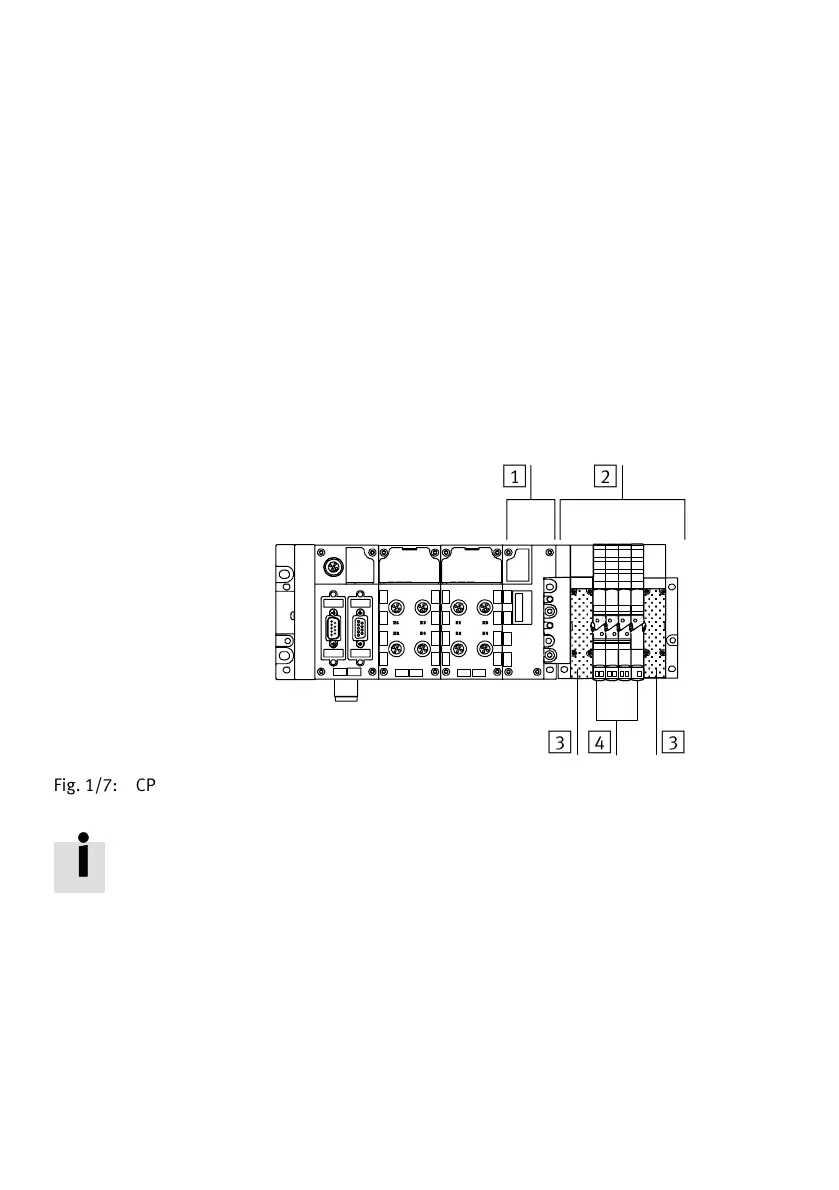

Fig.1/7: CPX terminal with CPA pneumatics
Further information on the pneumatics of your CPX valve ter
minal can be found in the appropriate Pneumatics Manual.
