Festo CPX - CPX Terminal with VTSA Pneumatics; Valve Terminal Pneumatics of Type VTSA

1. Overview of components
1−14
Festo P.BE−CPX−SYS−EN en 0902e
Valve terminal pneumatics of type VTSA
Valve terminal pneumatics of type VTSA are built up on a
modular basis and can be equipped with combinations of
valves in the following sizes:
 Size02 (to ISO15407−2), 18mm
 Size01 (to ISO15407−2), 26mm
 Size1 (to ISO5599−2), 42mm
In this way adaptation to the requirements of the machine or
system can also be made on
the pneumatic side.
The valve positions can be configured individually (sizes 18
and 26mm) or in steps of two (size 42mm) up to a maximum
of 32 valve positions. Unused valve positions can be sealed
with blanking plates.
1 Pneumatic
interfaces for
VTSA pneumatics
2 Valve terminal
pneumatics of
type VTSA
3 Right end plate
4 Valves of size
18mm
5 Supply plate
6 Valves of size
26mm
1
2
3
4
5
6

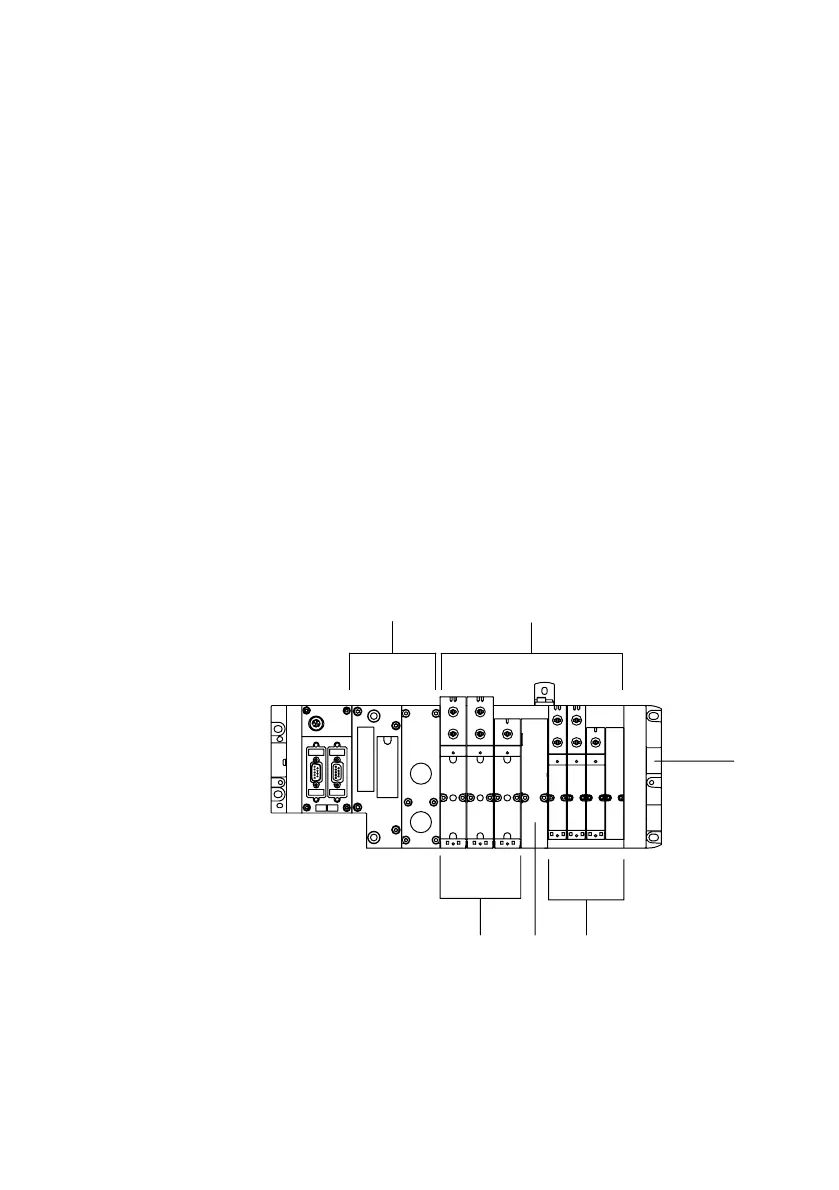

Fig.1/5: CPX terminal with VTSA pneumatics
