Festo CPX - Force Parametrisation Example for Binary Signals

C. General information on parametrisation
C−13
Festo P.BE−CPX−SYS−EN en 0902e
Mode of operation
Input information actually present will be replaced by the
values entered in the Force table in the process image inputs.
Information actually present in the process image outputs will
be replaced by the values entered in the Force table and
transmitted to the physical outputs.
1
1 0 0 1 0 0 0
0 1 0 1 0 1 1 0
1
1 1 0 1 0 1 0
Force mode
0 = Force blocked
1 = Force state
Force state
0 = Reset signal
1 = Set signal
0
1 1 0 0 0 1 0
1
2
3
1 Signal status previously
2 Module parameter
(channel−orientated)
3 Signal status afterwards

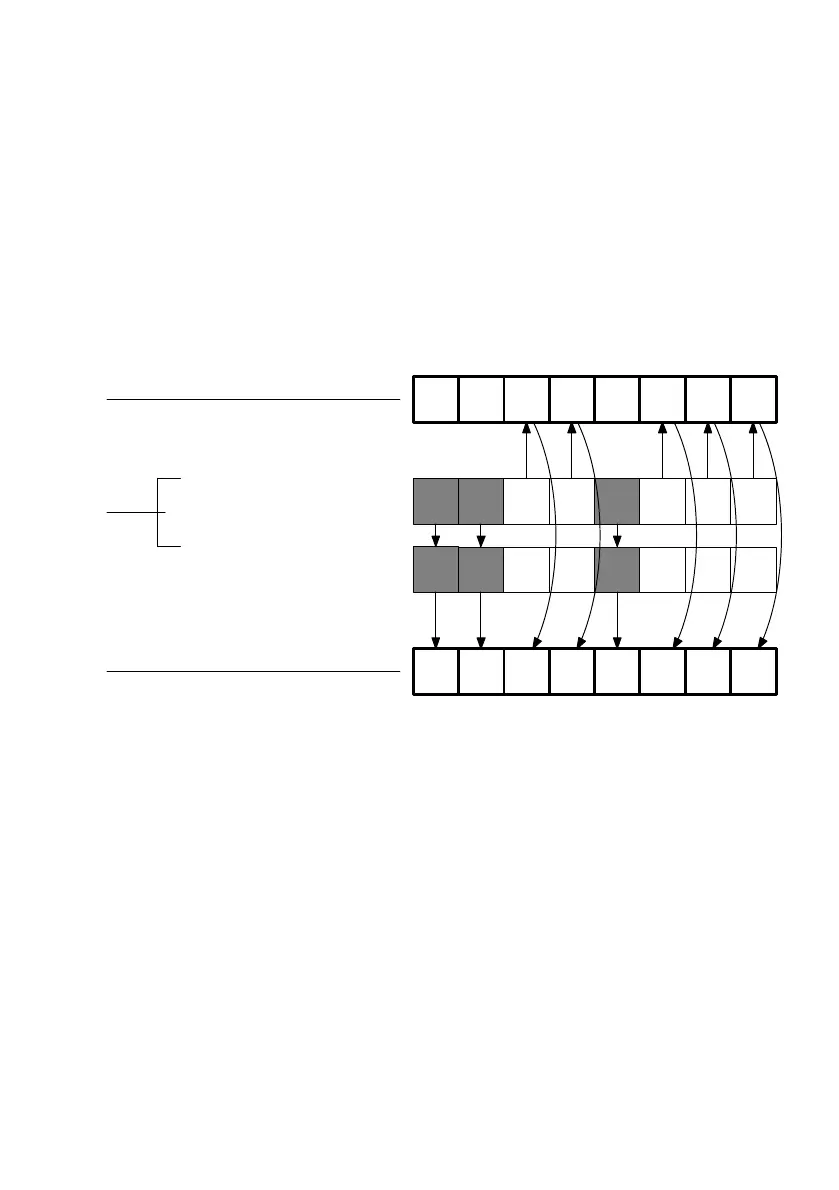

Fig.C/6: Force parametrisation  example for binary signals
