Separate circuits Interlinking blocks with a 5−pin plug enable separate circuits
to be created for supplying load voltage to the outputs/
valves and for supplying operating voltage to the electronics/
sensors. Fig.3/3 provides an overview.
1
2
3
4
CPX−(M−)GE−EV−S−... CPX−(M−)GE−EV
CPX−(M−)GE−EV−Z−...
5
0 V
val
24 V
val
0 V
OUT
24 V
OUT
0 V
el/sen
24 V
el/sen
FE
0 V
OUT
6
24 V
OUT
1 Load voltage for valves (24V
val
and
0V
val
)
2 Load voltage for digital outputs
(24V
out
and 0V
out
)
3 Operating voltage for electronics and
sensors (24V
el/sen
and 0V
el/sen
)
4 Functional earth (FE)
5 Rails for internal functions
6 Connection to FE connection on
end plate

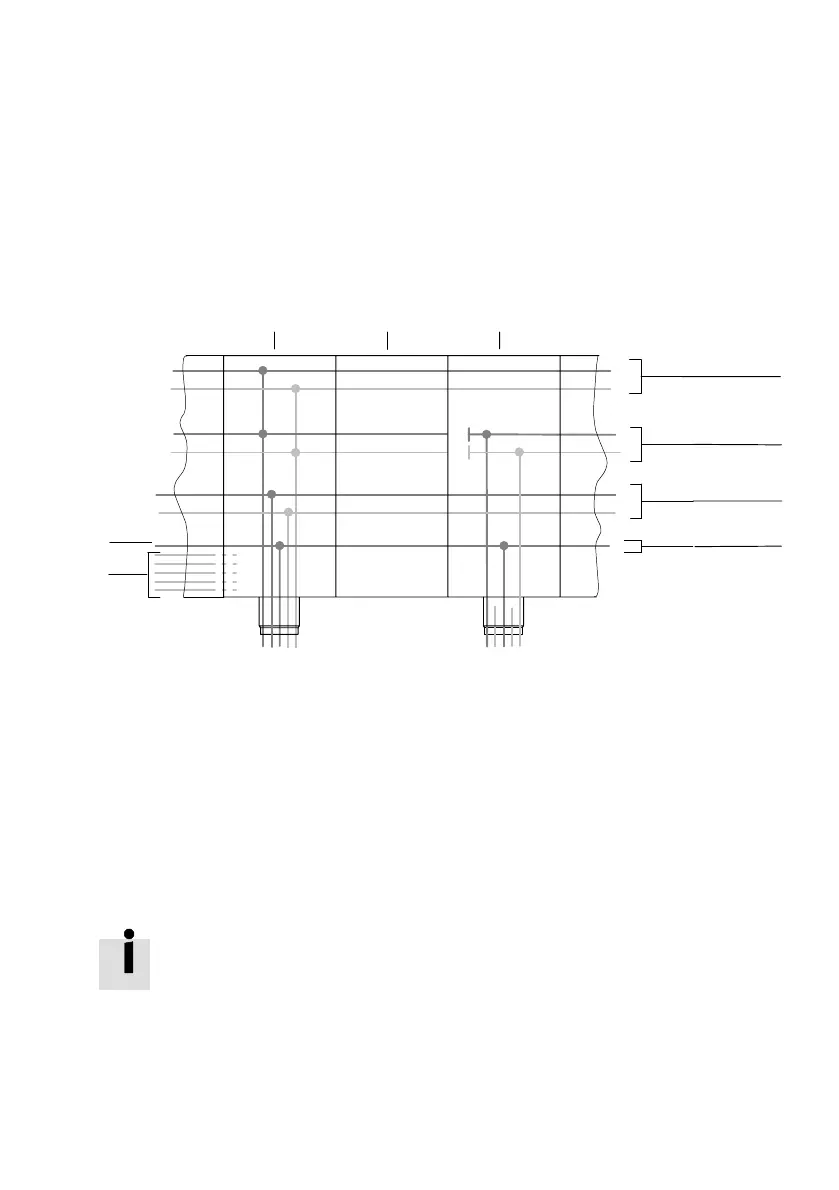

Fig.3/3: Basic representation of the power supply concept for interlinking blocks with
5−pin alternative connections (7/8", push−pull)
The pin allocation for all alternative connections is described
in Tab.3/4 and in the package insert for the interlinking
blocks with supply.
