Festo CPX - Fitting Additional Attachments for Wall Mounting

2. Assembly
2−32
Festo P.BE−CPX−SYS−EN en 0902e

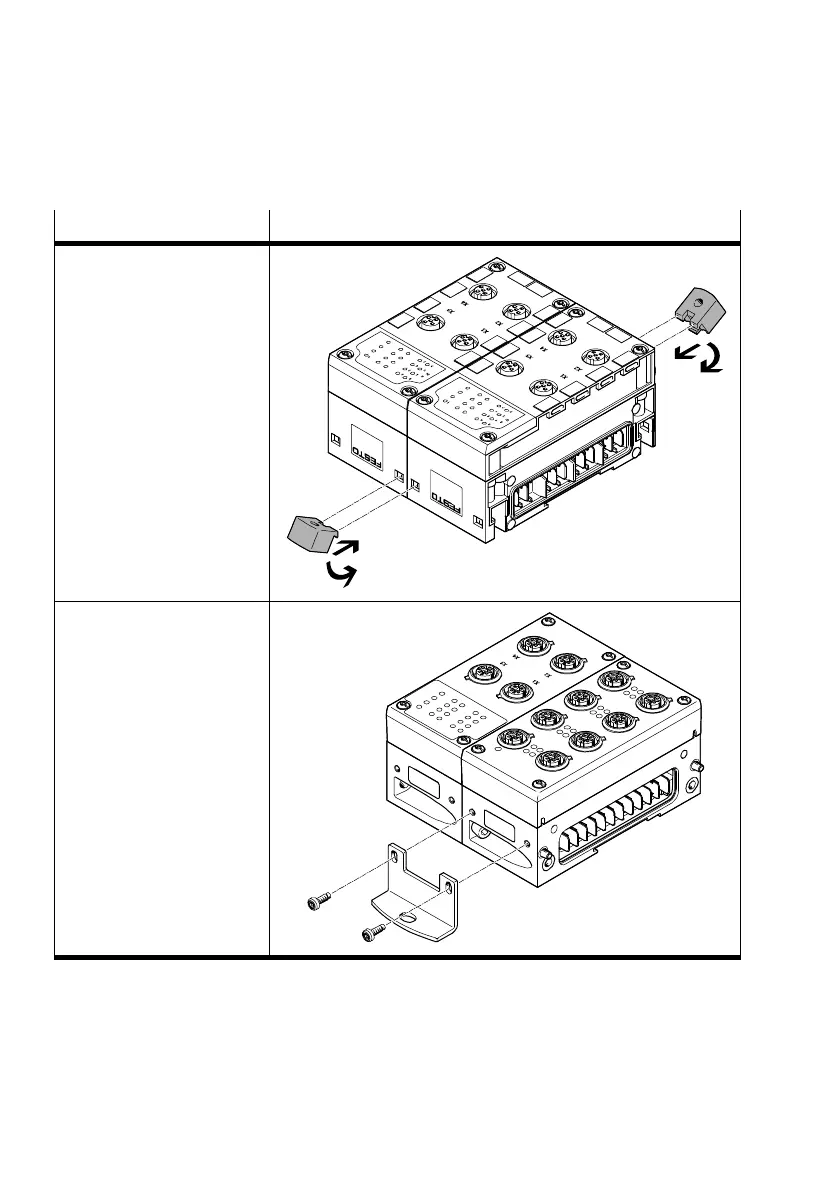

Mounting Assembly
Type CPX−BG−RW−...
for interlinking blocks in
plastic design:
1. Fit the fastenings 1
2. Clip the fastenings into
place 2
1
2
Type CPX−M−BG−RW−...
for interlinking blocks in metal
design:
Fix the mounting bracket 1
to the interlinking block with
the enclosed screws 2
1
2
Tab.2/4: Fitting additional attachments for wall mounting
For fitting onto a wall, proceed as follows:
1. Make sure that the fastening surface is flat and can sup
port the weight of the CPX terminal.
