2. Assembly
2−9
Festo P.BE−CPX−SYS−EN en 0902e
1 Tie rod
2 Loosened module
1
2
A

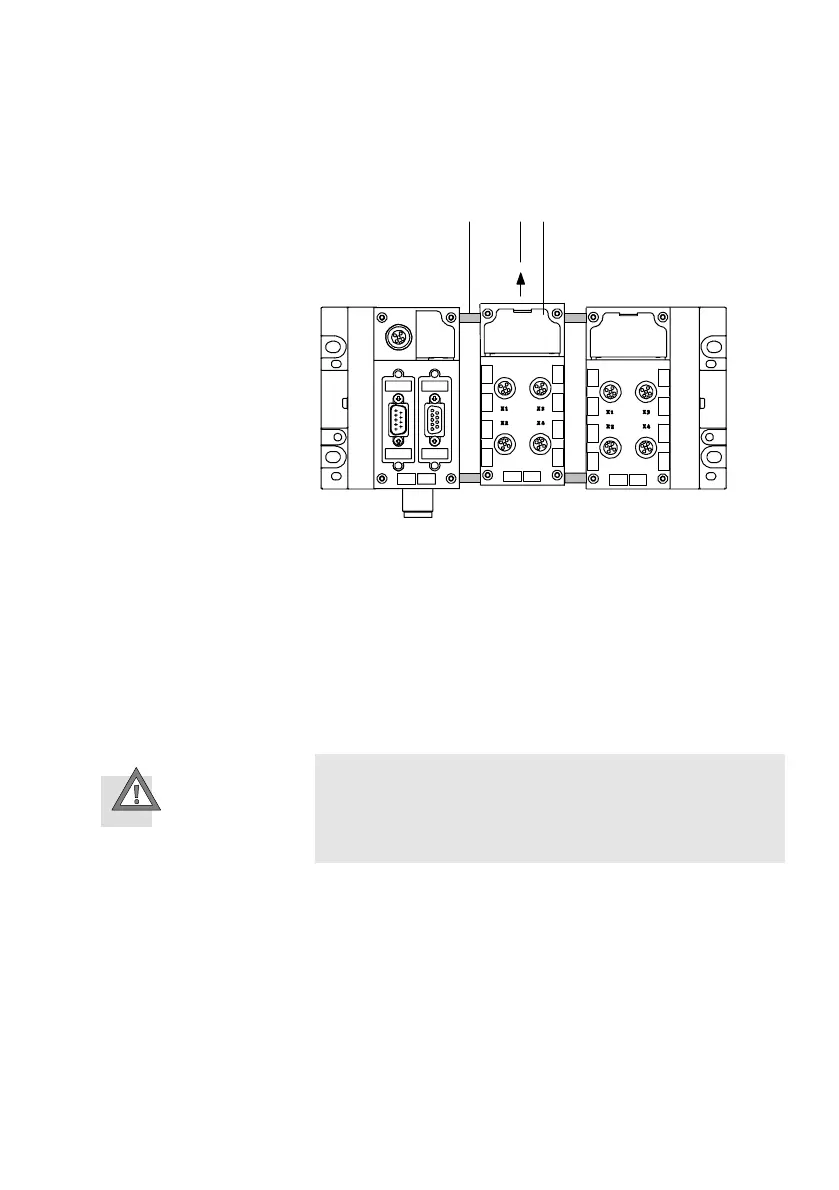

Fig.2/3: Dismantling a module or interlinking block
7. Carefully remove the loosened module by lifting it up
wards.
Assembly To insert a module or interlinking block, proceed as follows:
1. Insert the module in the desired position (see Fig.2/3).
The tie rod must lie exactly over the tie rod groove.
Caution
When interlinking blocks are arranged in series:
Make sure that the electric plug connectors of the inter−
linking blocks are not bent.
2. Align the CPX terminal on a flat surface so that the compo
nents are not offset. Use the bearing surface for the H−rail
to align the component correctly. It is easier
to align if you
use an H−rail. Alternatively, you can place the CPX ter
minal without pneumatics or with the CPA pneumatics in
such a way that the interlinking blocks’ electrical connec
tions are facing upwards (see Fig.2/4). The tie rod is held
in the tie rod groove by the force due to
weight.
