2. Assembly
2−34
Festo P.BE−CPX−SYS−EN en 0902e
Variant Mounting points
X 1
X 2
X 3
X 4
X 1
X 2
X 3
X 4
X 1
X 2
X 3
X 4
1
2
1
2
CPX terminal in plastic version, without
pneumatics
Required mounting with:
End plates 1: two M4 or M6 screws
each
For each additional mounting
bracket2 (needed if 4 or more
interlinking blocks are used, see
Tab.2/4), type CPX−BG−RW−...: one
M4 screw
1
2
1
CPX terminal in metal version, without
pneumatics
Required mounting with:
End plates 1: two M4 or M6 screws
each
For each additional mounting
bracket2 (needed if 4 or more
interlinking blocks are used, see
Tab.2/4), type CPX−M−BG−RW−...: one
M6 screw
2
1 1
32
4
CPX terminal in plastic version with
MPA pneumatics
Required mounting with:
End plates 1: two M4 or M6 screws
each
For each additional mounting
bracket2 (needed if 4 or more
interlinking blocks are used, see
Tab.2/4), type CPX−BG−RW−...: one
M4 screw
Pneumatic interface 3:
two M4 screws
For each mounting bracket 4 (see
MPA pneumatics manual) for MPA
pneumatics: one M6 screw

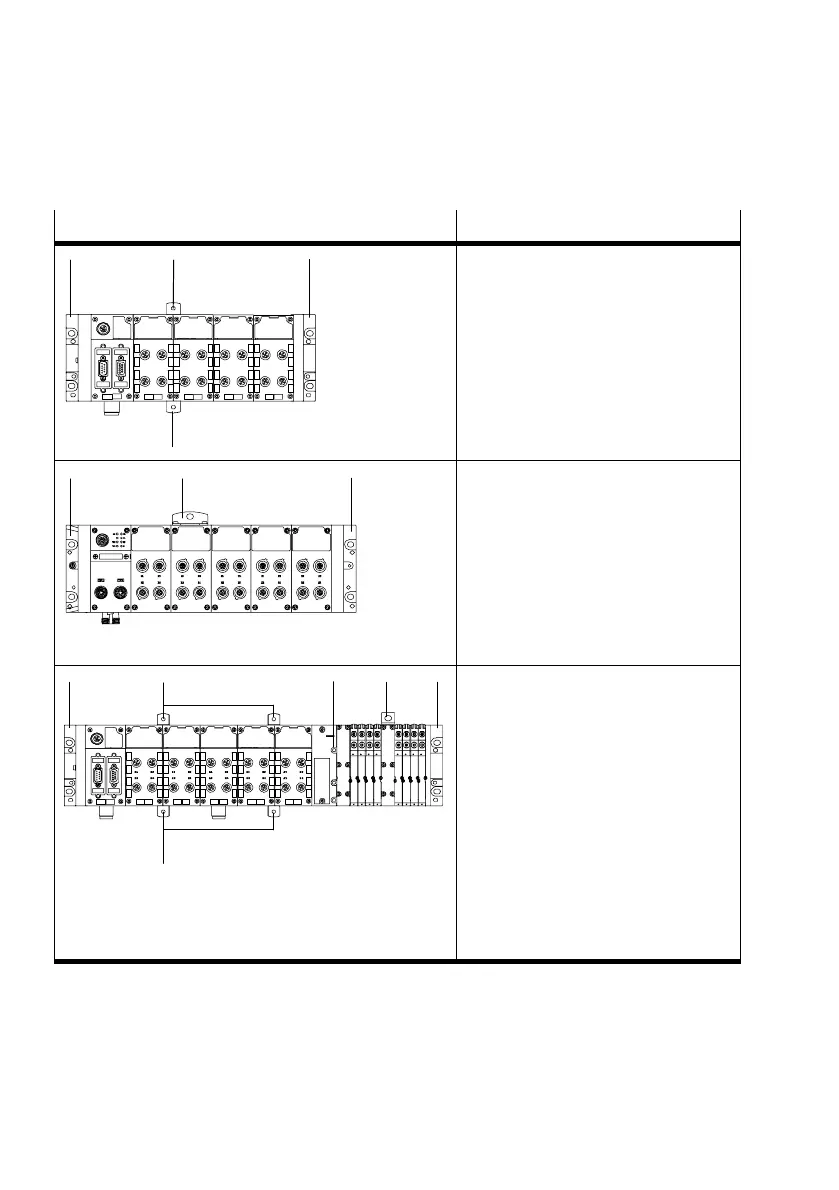

Tab.2/5: Mounting points required for wall mounting (part 1)
