Pre−assembling the plugs
and cables
Connect the plugs and cables as follows (example):
1. Open the plugs/sockets as follows:
· Power supply socket:
Insert the mains power socket into the operating volt
age connection of the CPX terminal. Unscrew the
housing of the socket.
Then remove the connecting part of the socket, which
is inserted in the operating voltage connection.
· Fieldbus socket and sensor plug (only with PG...):
Loosen the centre knurled nut.
1 Cable
2 Strain relief
3 Housing
4 Connecting part
1
2
3
4

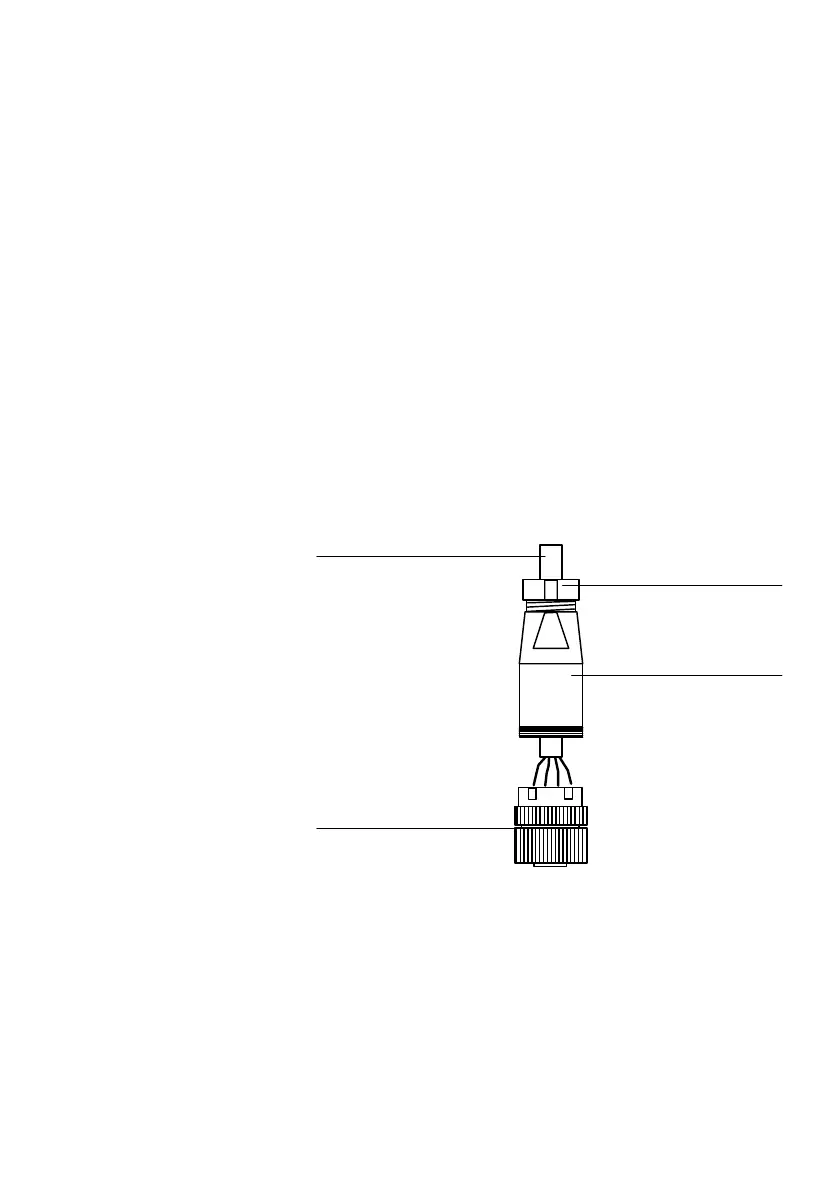

Fig.3/1: Individual parts of the socket and cable exit
2. Open the strain relief on the rear part of the housing.
Then pass the cable through.
3. Remove 5 mm of insulation from the end of the conduc
tors and fit cable−end sleeves on the stranded wires.
4. Connect the ends of the conductors.
