4. Commissioning
4−9
Festo P.BE−CPX−SYS−EN en 0902e
4.2.2 Possibilities of parametrisation
The parametrisation of the CPX terminal can be undertaken
as follows depending on the fieldbus protocol used:

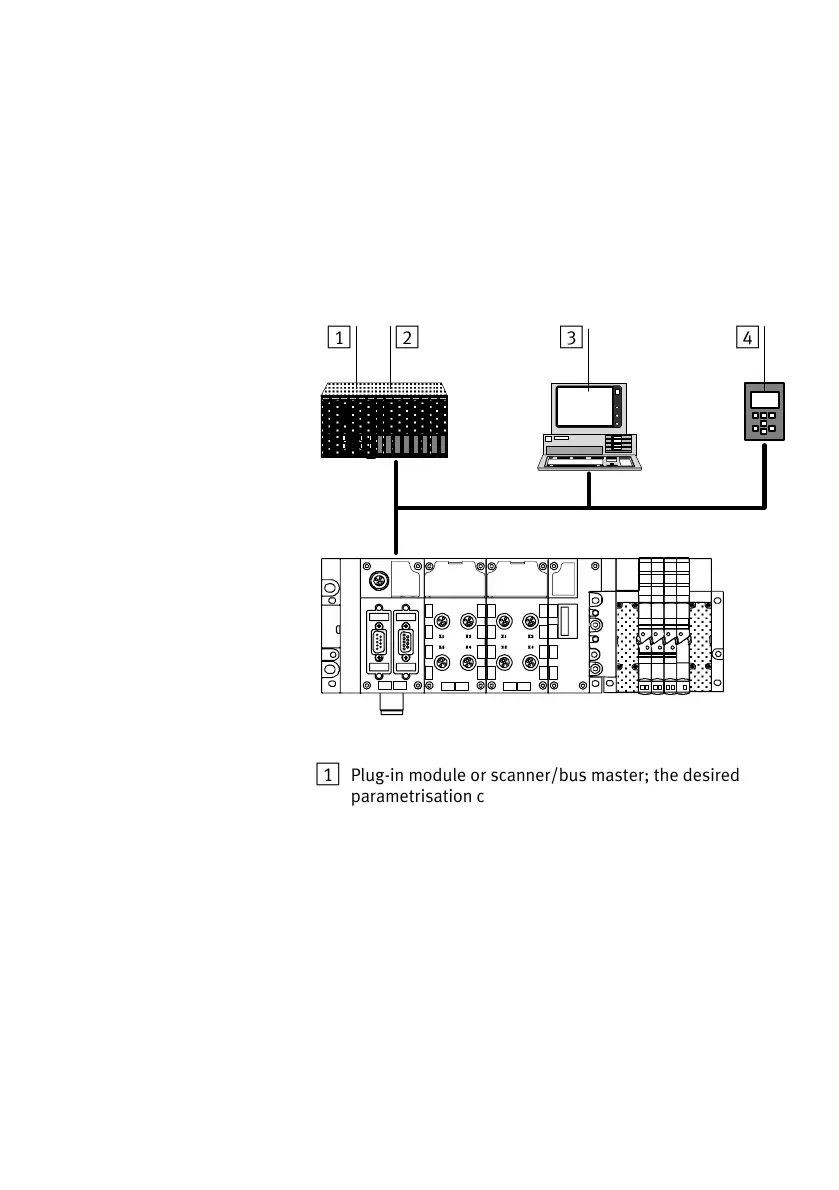

12 3 4
1 Plug−in module or scanner/bus master; the desired
parametrisation can be guaranteed e.g. in the start−up
phase or after fieldbus interruptions
2 User program in the higher−order PLC/IPC; parameters
can be modified during running time
3 Fieldbus−specific configurators; parameters can be
modified during the commissioning phase or during the
search for errors
4 Handheld; parameters can be modified during the
commissioning phase, during the search for errors or
during running time
Fig.4/2: Possibilities of parametrisation
