Festo CPX - Top View: Fitting the Valve Terminal Onto an H−Rail

2. Assembly
2−28
Festo P.BE−CPX−SYS−EN en 0902e
Fit the H−rail as follows:
1. Make sure that the fastening surface can support the
weight of the CPX terminal.
2. Fit an H−rail (support rail as per EN 60715 − 35x15;
width 35 mm, height 15 mm).
3. Fasten the H−rail at least every 100 mm to the fastening
surface.
4. Hang the CPX terminal onto the
H−rail. Secure the CPX
terminal on both sides with the H−rail clamping unit
against tilting or sliding down (see Fig.2/14).
5. With a vibrating load or if the node is fitted in a sloping
position, secure the H−rail clamping unit against uninten
tional loosening or opening with two locking screws
(Fig.2/14, item 4).
1
3
2
4
1 H−rail
2 H−rail clamping unit unlocked
3 H−rail clamping unit locked
4 Retaining screw

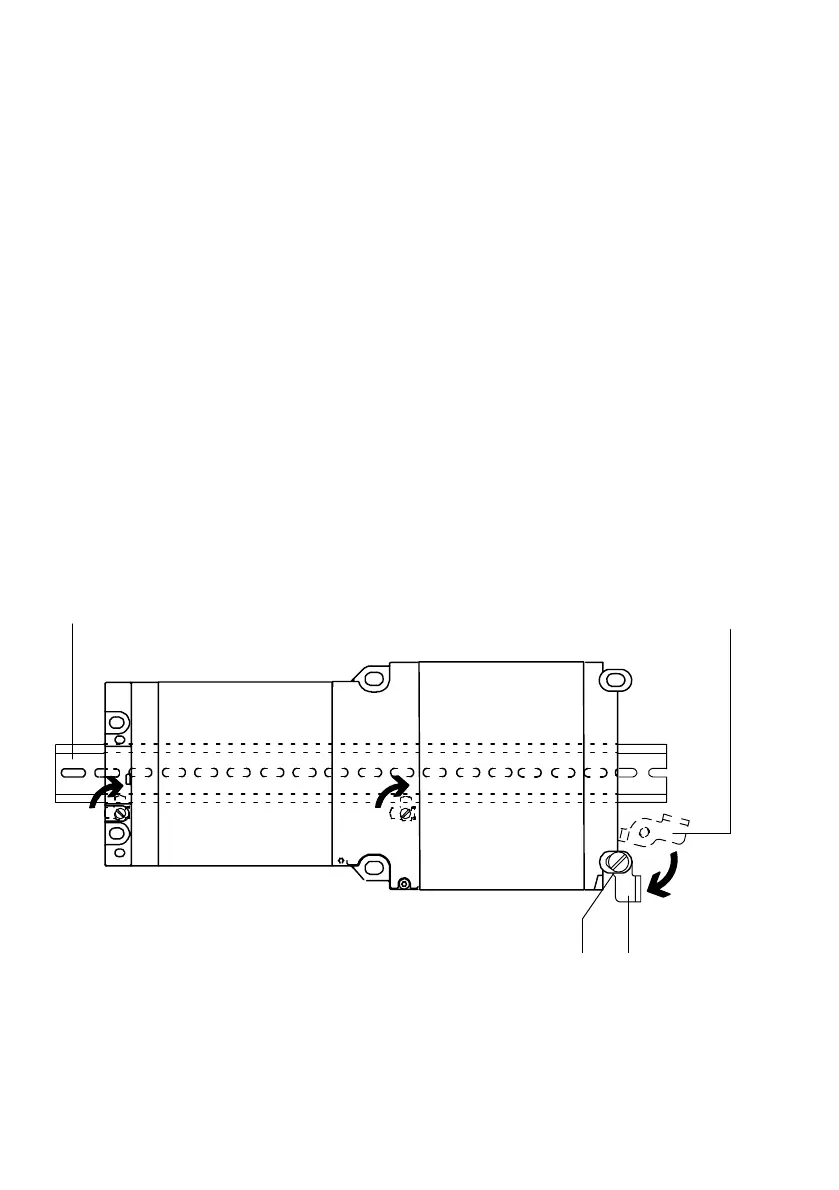

Fig.2/14: Top view: Fitting the valve terminal onto an H−rail
