1.1.2 Structure of the electric CPX modules
An electric CPX module always consists of:
An interlinking block (see section1.1.3 for variants)
An electronics module
A connection block (selectable for I/O modules)
1
2
3

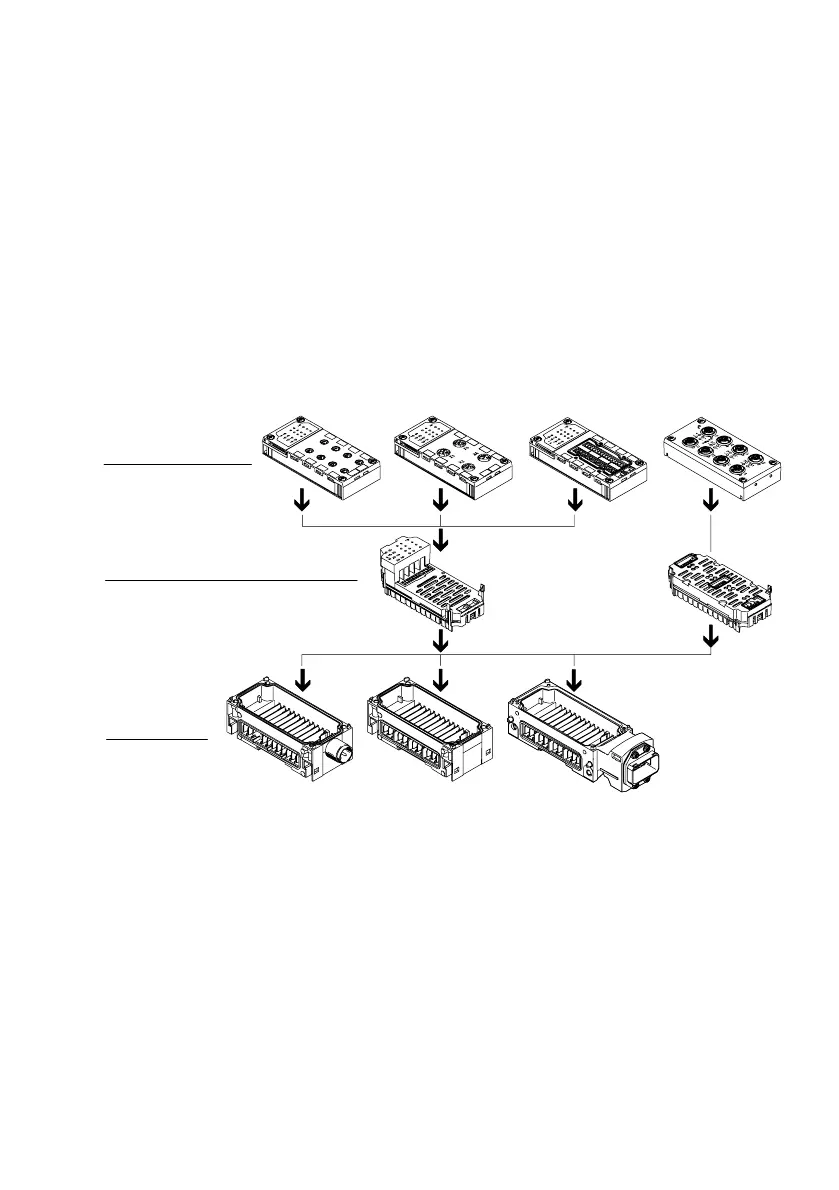

1 Sub−base (selectable housing upper
part)
2 Electronics module
3 Interlinking block (selectable housing
lower part)
Fig.1/8: Structure of the CPX modules (example)
Connection block The upper part of the housing selected for the CPX I/O mod
ules is called the connection block. Connection blocks provide
the necessary connections for sensors and actuators. In this
way, the CPX terminal offers a high degree of flexibility with
regard to adaptation to different applications and operating
conditions.
