Valve terminal pneumatics of type MPA
MPA pneumatics consist of serially linked MPA pneumatic
modules. From a technical viewpoint, the MPA pneumatic
modules in a CPX terminal represent digital output modules
for controlling the integrated valves (valve solenoid coils).
The pneumatic interface for MPA pneumatics provides the
mechanical and electrical connection to the MPA pneumatic
modules.
CPX terminals with MPA
pneumatics can be expanded as fol
lows:
CPX terminal with MPA pneumatics
Number of valve positions
1)
Load voltage supply for the valves via ...
 CPX terminal
2)
 CPX terminal and electric supply plate (MPA)
3)
MPA1
4, 8, 12 ... 32
4, 8, 12 ... 64
MPA2
2, 4, 6 ... 16
2, 4, 6 ... 32
1) Two solenoid coils can be controlled per valve position.
2) A max. of 64 solenoid coils can be supplied.
3) A max. of 128 solenoid coils can be supplied.
Tab.1/4: Number of valve positions of the CPX terminal with MPA pneumatics
1 Pneumatic
interface for MPA
pneumatics
2 Valve terminal
pneumatics of
type MPA
3 Right end plate
4 MPA1 pneumatic
module
5 Supply plate
12
3
45
4

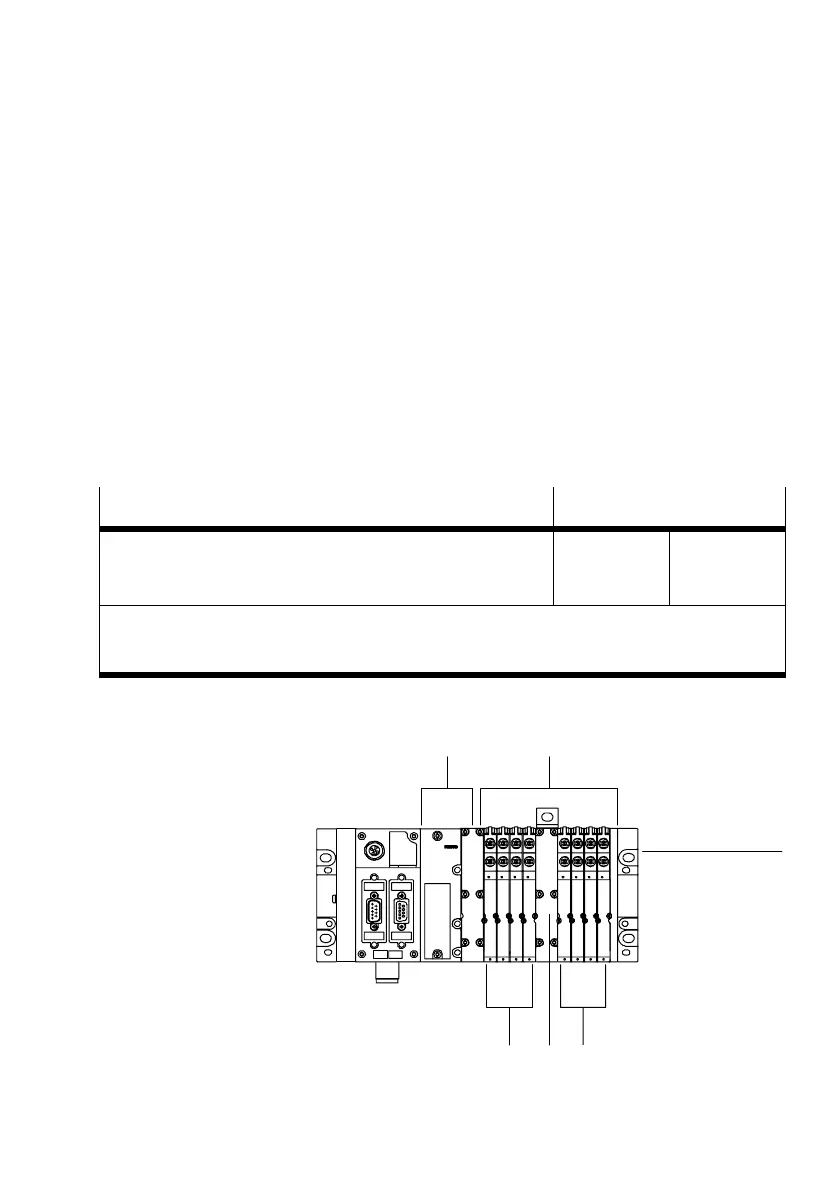

Fig.1/4: CPX terminal with MPA pneumatics
