CPX terminals without pneumatics
CPX terminals without pneumatic modules possess an end
plate instead of the pneumatic interface. This design provides
digital and analogue inputs and outputs on the relevant
fieldbus. A maximum of 10 electric modules (including the
CPX bus node) are permitted on a CPX terminal.
1 CPX bus node
2 I/O modules
3 Right end plate
4 Left end plate
X 1
X 2
X 3
X 4
X 1
X 2
X 3
X 4
X 1
X 2
X 3
X 4
1 2
3
4

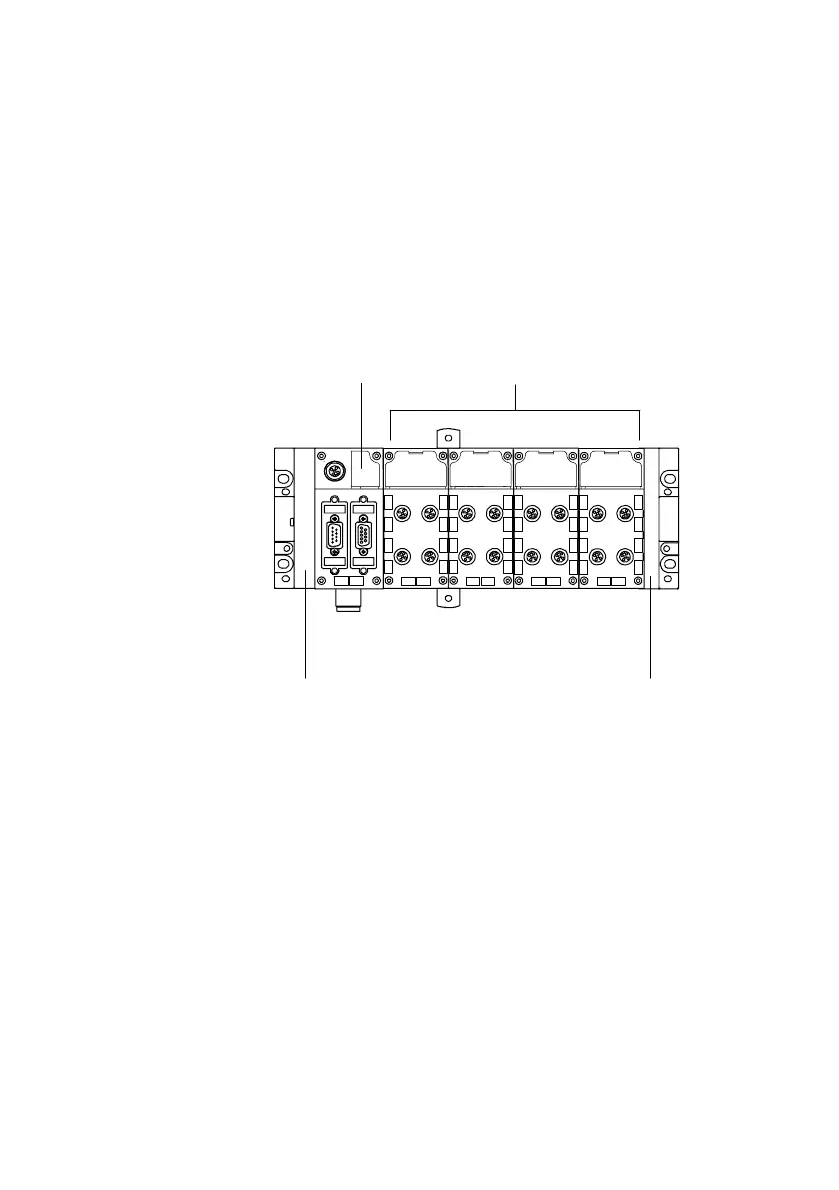

Fig.1/3: CPX terminal as fieldbus I/O slave
