1. Overview of components
1−5
Festo P.BE−CPX−SYS−EN en 0902e

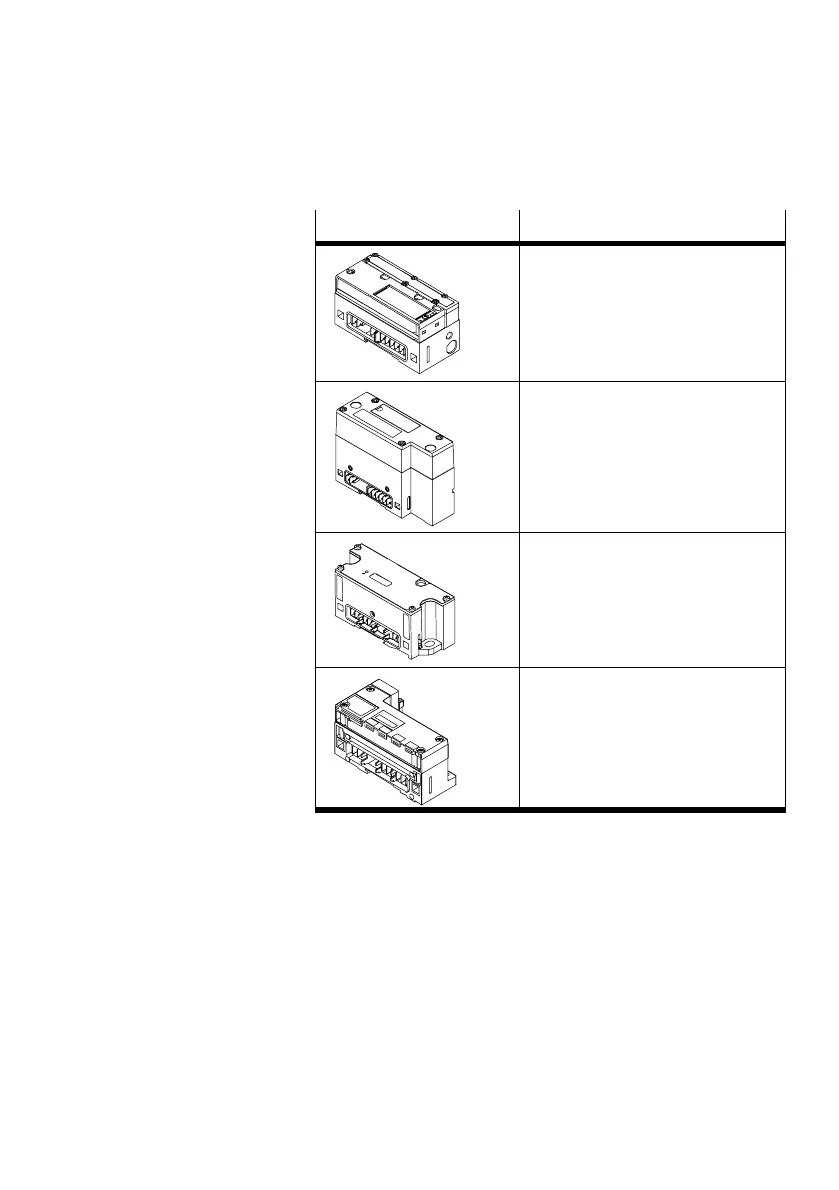

Modules Brief description
Pneumatic interface for connecting
the modular electrical peripherals of
type50 (CPX) to valve terminals of
type32 (MPA)
Pneumatic interface for connecting
the modular electrical peripherals of
type50 (CPX) to VTSA/ISO valves
(type44)
Pneumatic interface for connecting
the modular electrical periphery
type50 (CPX) to valve terminals of
type03 (Midi/Maxi).
Pneumatic interface for connecting
the modular electrical peripherals of
type50 (CPX) to valve terminals of
type12 (CPA)
Tab.1/2: Pneumatic interface modules for CPX terminals
