1. Overview of components
1−23
Festo P.BE−CPX−SYS−EN en 0902e

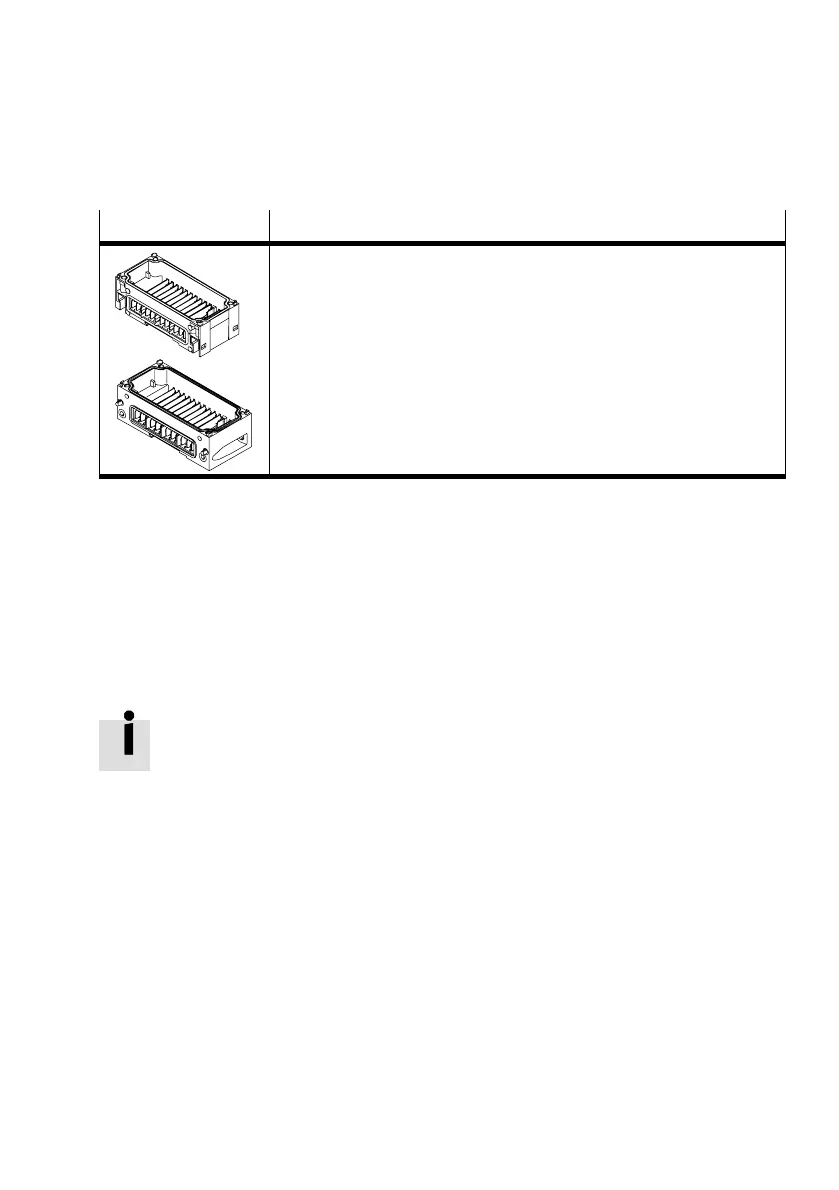

Interlinking blocks Description
Types CPX−(M−)GE−EV
Interlinking blocks without supply
Tab.1/7: Interlinking blocks without supply
Intermediate supply for
load voltage supply of
valves in MPA
When using MPA pneumatics, a max. of8 sub−bases
equipped with valves can be supplied electrically with
load voltage by the CPX terminal. If the pneumatics side
is expanded further (>8sub−bases), an electric supply plate
must be used for the
power supply.
For additional information about permissible power supplies,
see the relevant manual for MPA−... pneumatics", type
P.BE−MPA−... in the section Replacing electronics modules".
