4. Commissioning positioning systems
4−45
Festo P.BE−SPC200−WIN−PISA−CD−EN en 0901d
6. A message is displayed stating that a 1−signal at ENABLE
is now required for the movement test.
Apply a 1−signal at ENABLE and confirm with Continue".
With Continue" in active test mode the 1−signal will be
set at ENABLE by WinPISA.
The dialogue window Movement test" will be displayed.
WinPISA sets the control
voltage of the valves of the connec
ted axes at first to 5.0 Volt. The control slide of the valve then
assumes the mid−position.

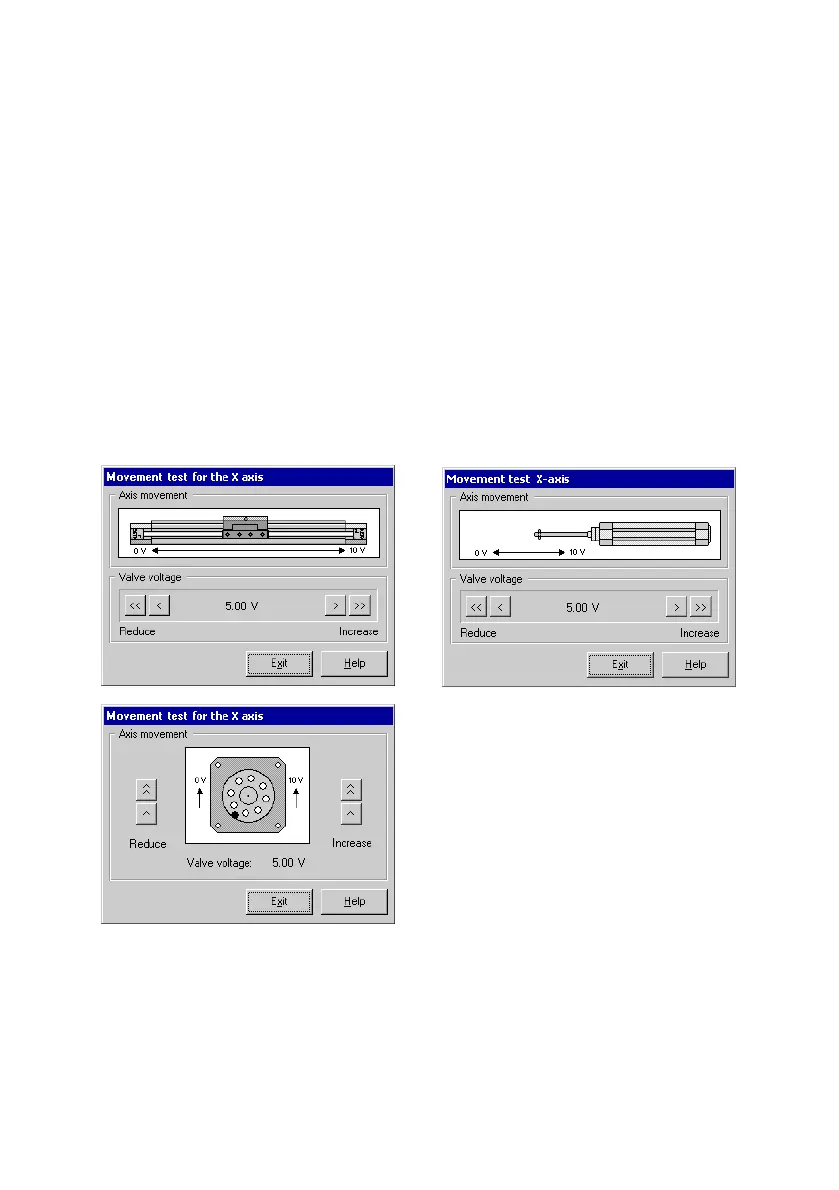

Fig.4/16: Movement test for rodless linear drives, piston−rod cylinders, swivel modules
and standard cylinders with incremental measuring system
