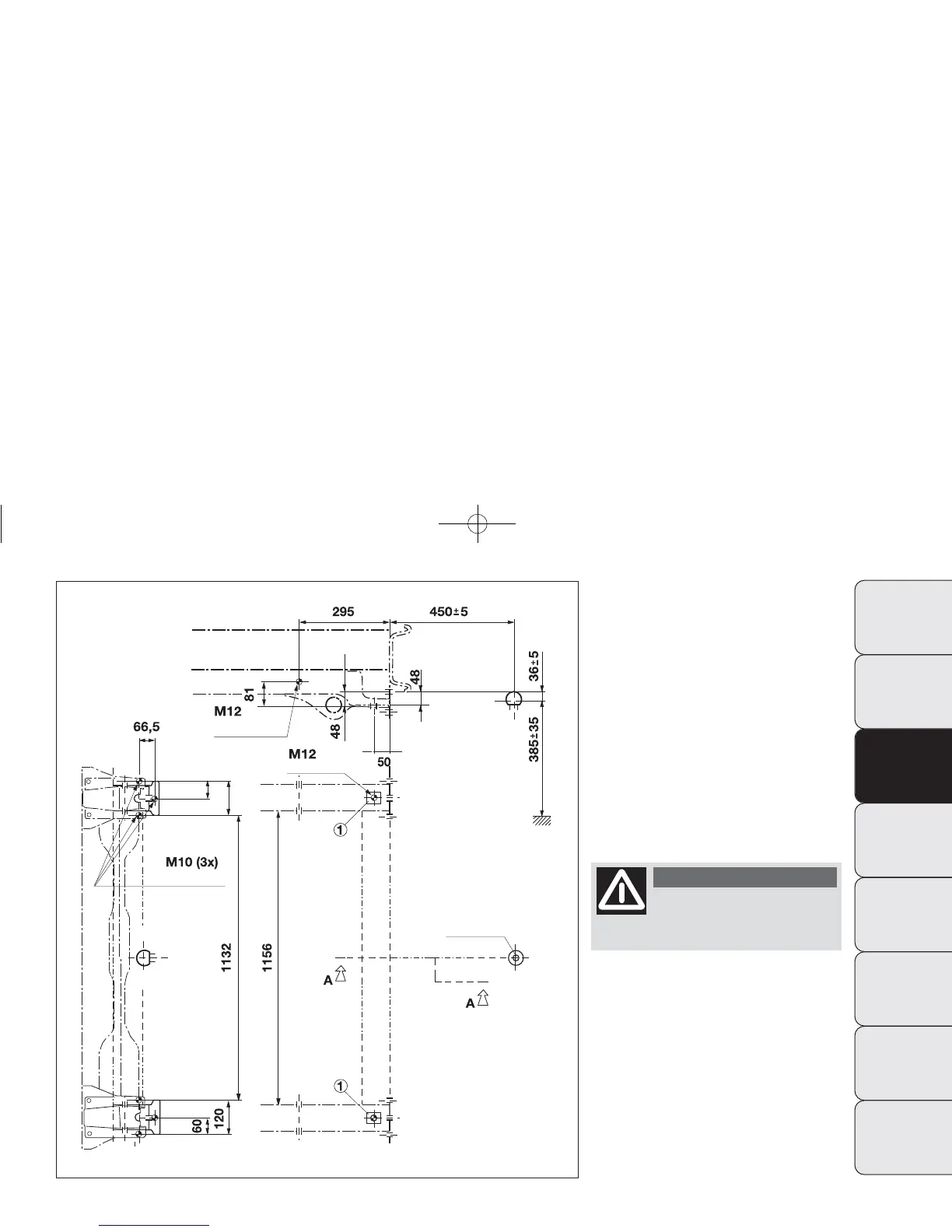

Installation diagram for Truck
and Chassis Cab versions
– fig. 151
Another tow hook specific to Truck
and Chassis Cab versions is shown in
fig. 151.
The structure Ø must be fastened in
the points shown using a total of 6
M10×1.25 screws and 4 M12 screws.
MAX LOAD ON BALL: 100/120 kg ac-
cording to the payload (see “Weights”
table in the “Technical data” section).
After fitting, screw holes
shall be sealed to prevent
exhaust gas inlets.
WARNING
fig. 151
F0N0250m
Existing hole
Existing hole
Existing hole
Standard ball
laden
