DIMENSIONS
VAN VERSION
Dimensions are expressed in mm
and refer to the vehicle fitted with
standard tyres.
The height refers to the unladen vehicle.
232
DASHBOARD
AND CONTROLS
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

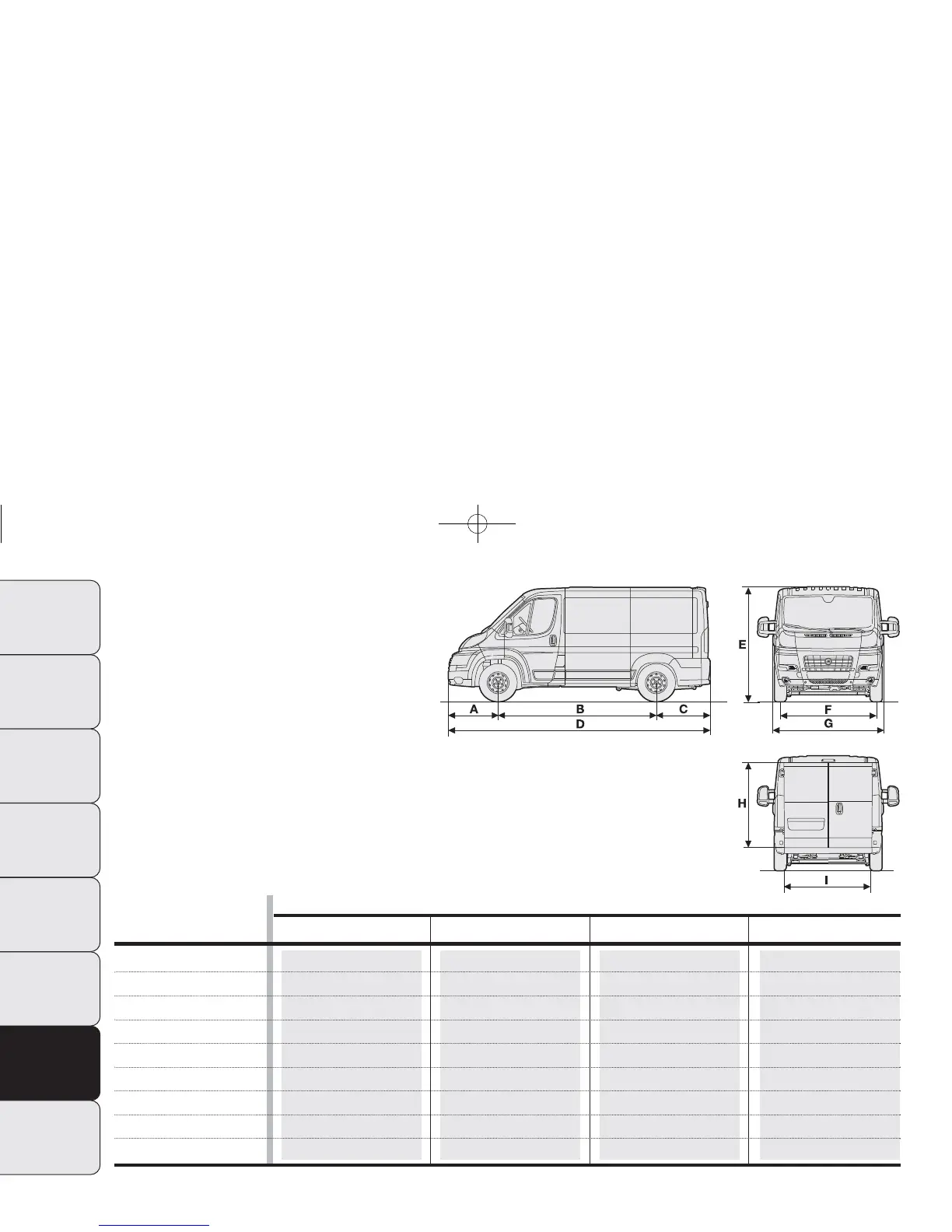

fig. 231
F0N0341m
VAN
CHI MH1 – MH2 LH2 – LH3 XLH2 – XLH3
A 948 948 948 948
B 3000 3450 4035 4035
C 1015 1015 1015 1380
D 4963 5413 5998 6363
E 2254 2254 – 2524 2524 – 2764 2524 – 2764
F 1810 1810 1810 1810
G 2050 2050 2050 2050
H –– – –
I 1790 1790 1790 1790
The sizes vary according to the various versions within the limits indicated above
