REAR LIGHT CLUSTERS fig. 183-184-185
The bulbs are arranged inside the light cluster as follows:
A brake/side lights
B direction indicators
C reversing lights
D rear fog lights (for Heavy Van versions, the rear fog
lights are integral with the bumpers, see paragraph
“Heavy Van rear fog lights”).
184
DASHBOARD
AND CONTROLS
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0087m
fig. 184
F0N0088m
fig. 185

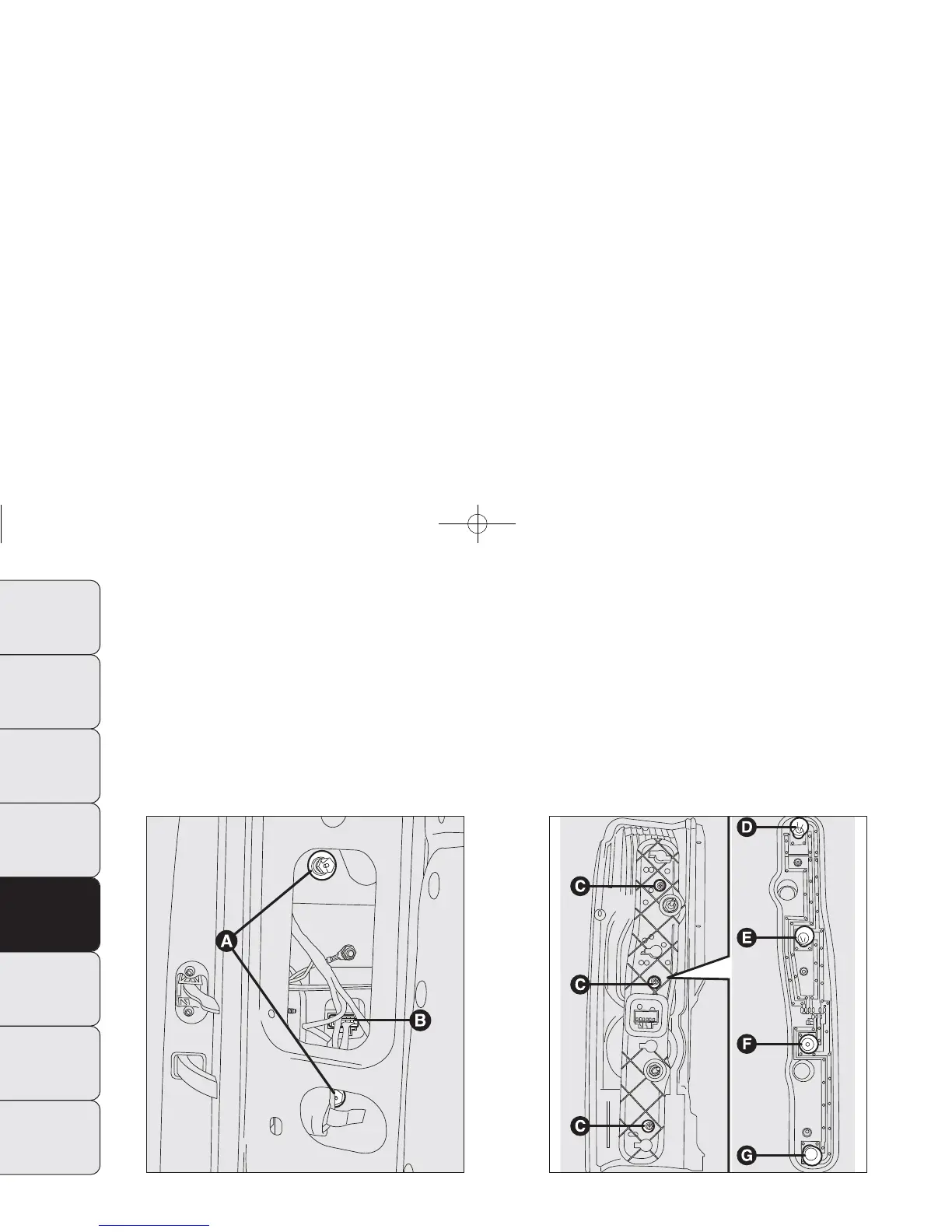

Proceed as follows to replace a bulb:
❒ open the rear side-hinged door and then undo the two
fastening screws A;
❒ disconnect the central electric connector B and pull the
lens unit outwards;
❒ unscrew the screws using the screwdriver provided C
and remove the bulb holder;
❒ remove the bulb D, E, F, G pushing it gently and turn-
ing anti-clockwise (“bayonet” clamping), then replace it;
