RAR FOG LIGHTS (Heavy Van)
To change the bulb proceed as follows:
❒
take up position at the rear of the side bumper;
❒
unscrew the lower fastening A between the central and
side bumpers fig. 187;
❒
after removing the tail-light, unscrew upper fastening
B-fig. 187;
❒
unscrew both fastenings C on the side of the rear side-
hinged door and open the door slightly fig. 188;
❒
unscrew the three side fastenings D on side panel, ac-
cessible after removing the side mounting fig. 188. To
remove the moulding, undo the three lower self-tap-
ping screws and undo the pins with care to avoid break-
ing them. If you break one or more pins, they will have
to be replaced;
❒
refit the bulb holder and tighten the screws C;
❒
reconnect the electric connector B, suitably refit the
unit to the car body and then tighten the fastening
screws A.

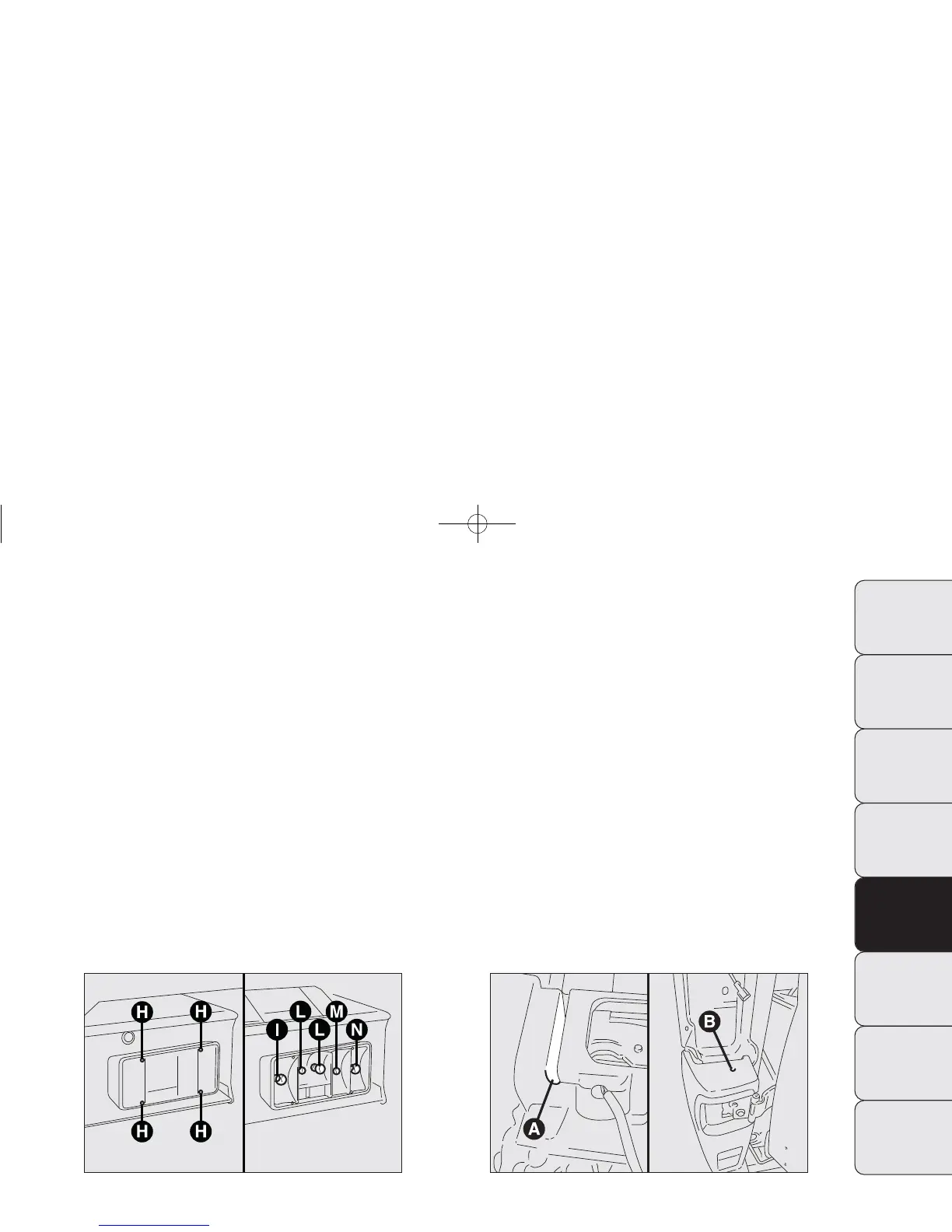

For truck and chassis cab versions:
Undo the four screws H-fig. 186 and replace the bulbs:
I bulb for rear fog light (left side); bulb for reversing light
(right side).
L bulb for side light.
M bulb for brake light.
N: bulb for direction signal.
