Electrical adjustment
This operation is only possible with ignition key in MAR.
To adjust the mirror, place the knob B in one of the four
positions: ÿ1 left mirror, ⁄ 2 right mirror ¤ 3 left wide
angle, Ÿ 4 right wide angle.
After positioning the knob, move in the arrowed direction
to adjust the glass of the chosen mirror.
MIRRORS

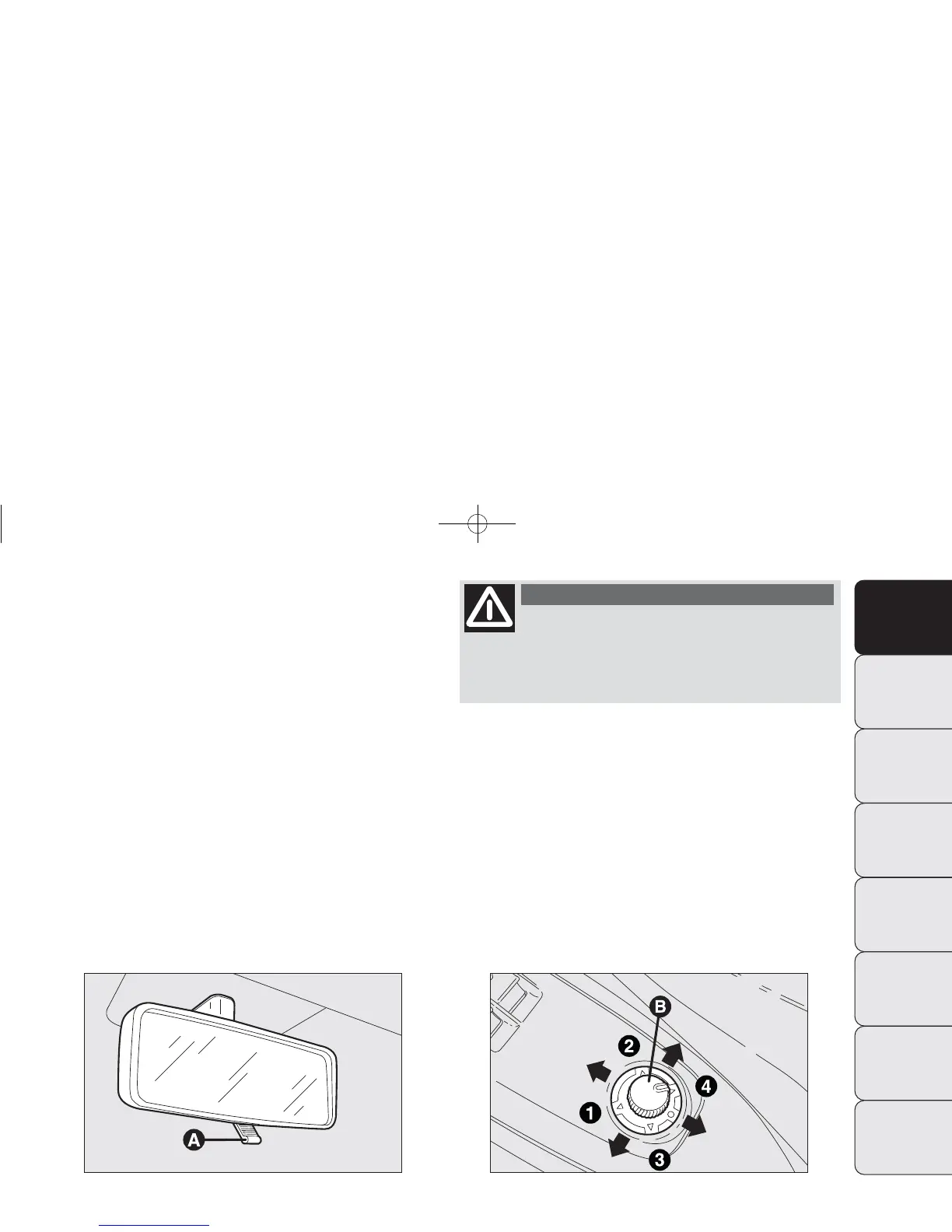

INTERIOR MIRROR fig. 38
The mirror is fitted with a safety device that causes its re-
lease in the event of a violent impact with the passenger.
It can be moved using the lever A to two different posi-
tions: normal or antiglare.
WING MIRRORS
Adjustment
fig. 39
Manual adjustment
Adjust each of the two mirror glasses directly.
The reflective surface of the lower part
of the rear view mirror is parabolic and in-
creases the field of view. The image size is reduced
and gives the impression that the selected item
is further away than it actually is.
WARNING
