F0N0026m

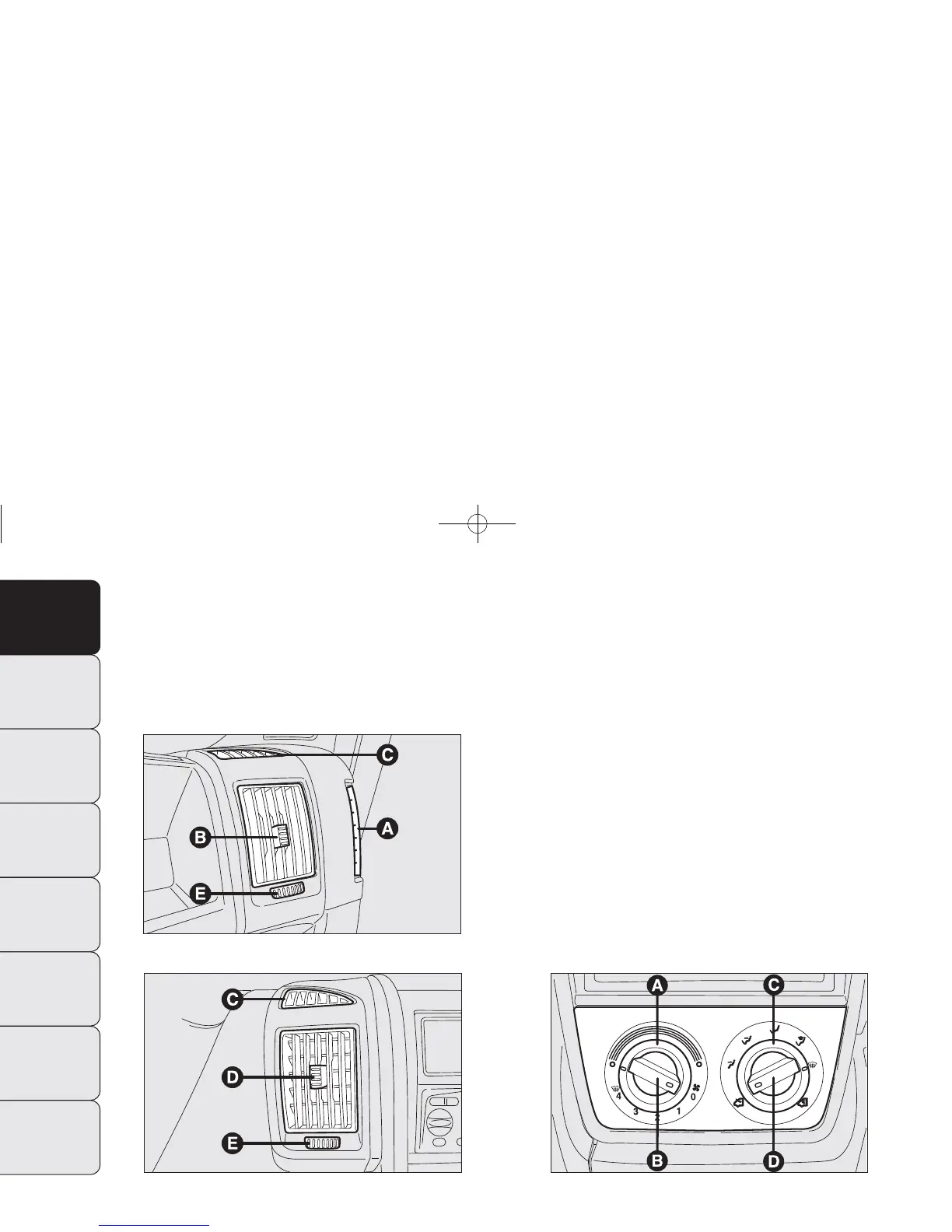

fig. 43
F0N0027m
fig. 44
F0N0028m
fig. 45
D Adjustable centre vents.
E Air flow adjustment control.
The vents A and C cannot be adjusted.
CONTROLS fig. 45
Air temperature adjustment rotating wheel A
(mixing hot/cold air)
Red section = hot air
Blue section = cold air
Knob B activates/adjusts the fan
p 0 = fan off
1-2-3 = ventilation speed
4
-
= maximum fan speed
ADJUSTABLE SIDE AND CENTRE VENTS
fig. 43-44
A Fixed vents for side windows.
B Adjustable side vents.
C Fixed vents.
50
DASHBOARD
AND CONTROLS
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
037-122 DUCATO LUM EN 11-02-2010 14:26 Pagina 50
