The system consists of a TV camera installed in a plastic
casing on the rear roof crossmember, which also includes
a third brake light and a display in a plastic casing housed
in the upper glove compartment console area.
The display has buttons (On/Off, brightness, backlight);
to use them, operate the release button and move to the
open position.
The rear view display is adjusted in mirror mode. When
not in use, it must be closed in the upper oddments com-
partment console area.
TV CAMERA SYSTEM AND REAR VISIBILITY
DISPLAY
(for versions/markets where provided)

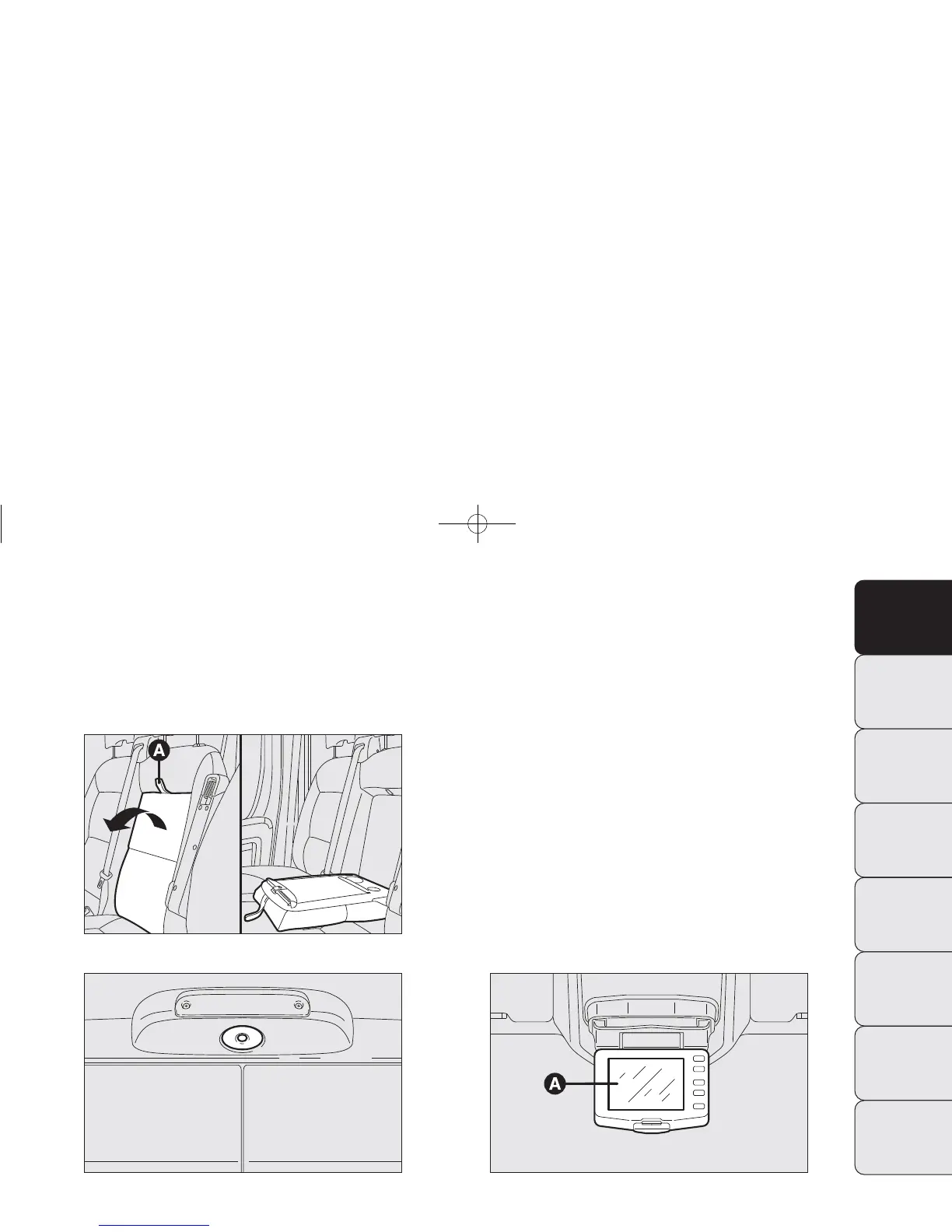

The parking TV camera system fig. 103 allows the driver
a view of the scene behind the vehicle by means of a display
A-fig. 104 in the passenger compartment.
