Operation must be enabled using the button F-fig. 61 in
the control panel.
❒
Turn the knob D to the maximum cold position (knob
at blue sector), when air at ambient temperature will come
out of the rear footwell vents (located under the seats
in the 2nd and 3rd row for Panorama versions and the
grille on the left wheel arch side for Combi versions);
❒
Turn the knob D to the maximum heating position (knob
at red sector), when warm air will emerge (with the en-
gine warmed up), from the rear footwell outlets (locat-
ed under the seats in the 2nd and 3rd row for Panorama
versions and the grille on the left wheel arch side for
Combi versions).

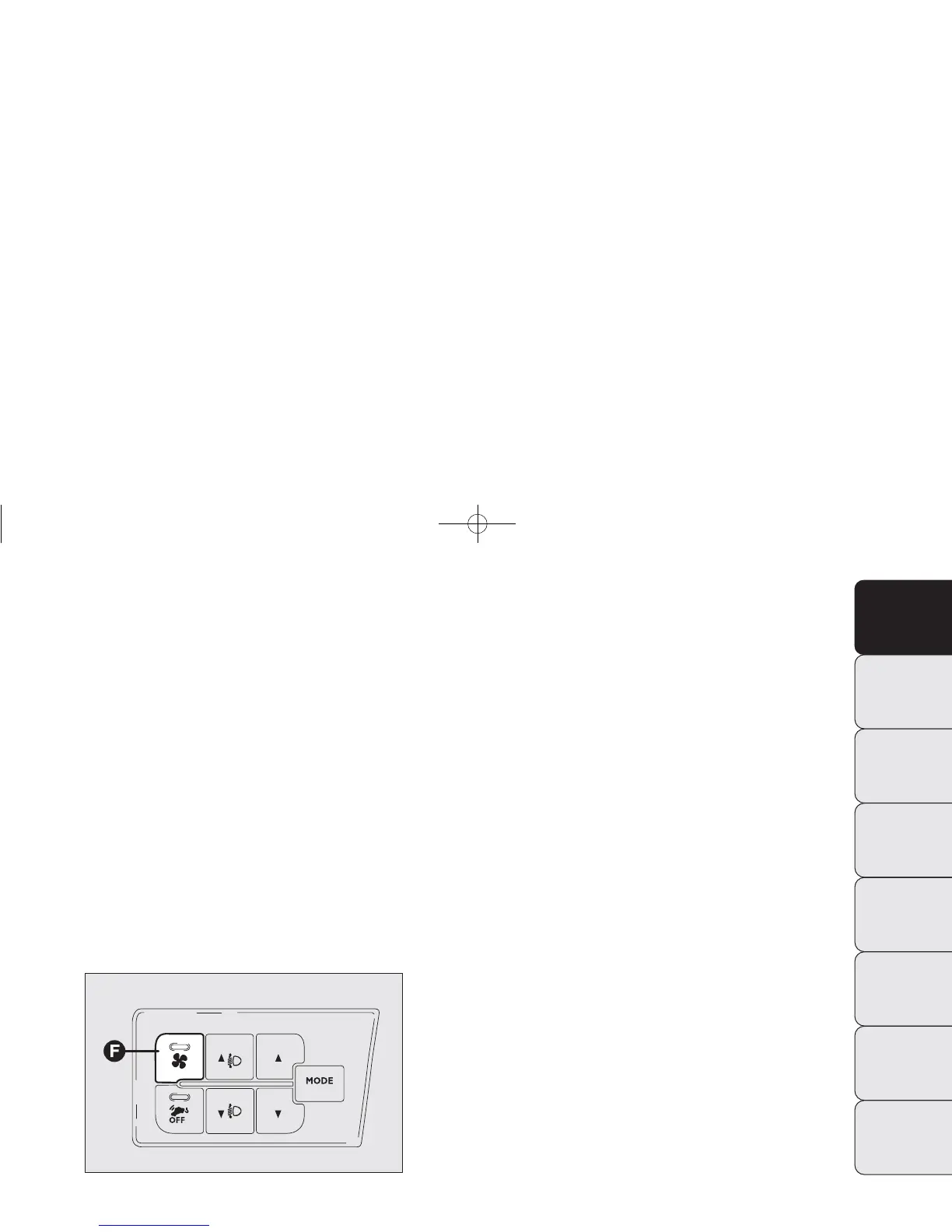

F0N0185m
fig. 61
ADDITIONAL REAR CLIMATE CONTROL
(Panorama and Combi)
(for versions/markets, where provided)
The Panorama and Combi versions are equipped with
a main heating/air conditioning system plus an additional
system (available on request) with controls in the ceiling
roof lining above the second row of seats, fig. 60.
Button F-fig. 61 in the control panel must be enabled for
operation; the air conditioning only works if the main air
conditioner is on.
❒
When the knob D is placed in the fully cold position
(control in blue sector) cold air comes out the vents
in the ceiling.
❒
Turn the knob D to the maximum heating position
(knob at red sector), when warm air will emerge (with
the engine warmed up), from the rear footwell outlets
(located under the seats in the 2nd and 3rd row for
Panorama versions and the grille on the left wheel arch
side for Combi versions).
❒
When the knob D is in an intermediate position, air
will be distributed between the vents in the ceiling roof
and the rear footwell outlets to alter the temperature.
IMPORTANT If the compressor on the main air condi-
tioner control is turned on (operation of button E), even
if the additional air conditioner fan is in position 0, the
1st speed will automatically be activated to prevent ice
formation, with possible damage to the component.
