BOX CHASSIS CAB
CHI MH1 LH1 XLH1 CHI MH1-MLH1 LH1 XLH1
A 948 948 948 948 948 948 948 948
B 3000 3450 4035 4035 3000 3450-3800 4035 4035
C 1345 1345 1345 1710 960 960 960 1325
D 5293 5743 6328 6693 4908 5358-5708 5943 6308
E 2798 3248 3833 4198 – – – –
F 2254 2254 2254 2254 2254 2254 2254 2254
G 1810 1810 1810 1810 1810 1810 1810 1810
H 1790 1790 1790 1790 1790÷1980 1790÷1980 1790÷1980 1790÷1980
L 2100 2100 2100 2100 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
TRUCK VERSION
Dimensions are expressed in mm
and refer to the vehicle fitted with
standard tyres.
The height refers to the unladen vehicle.

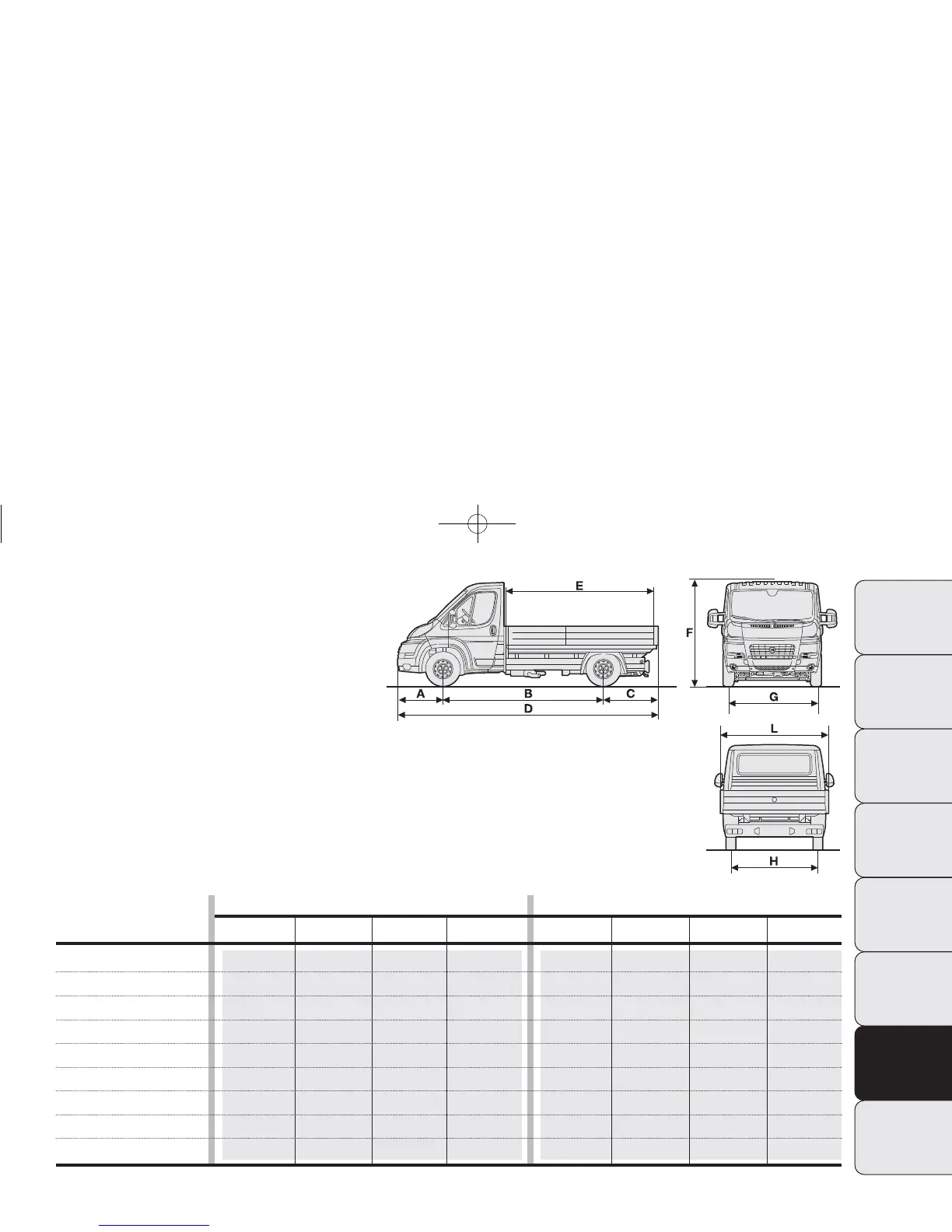

fig. 232
F0N0342m
