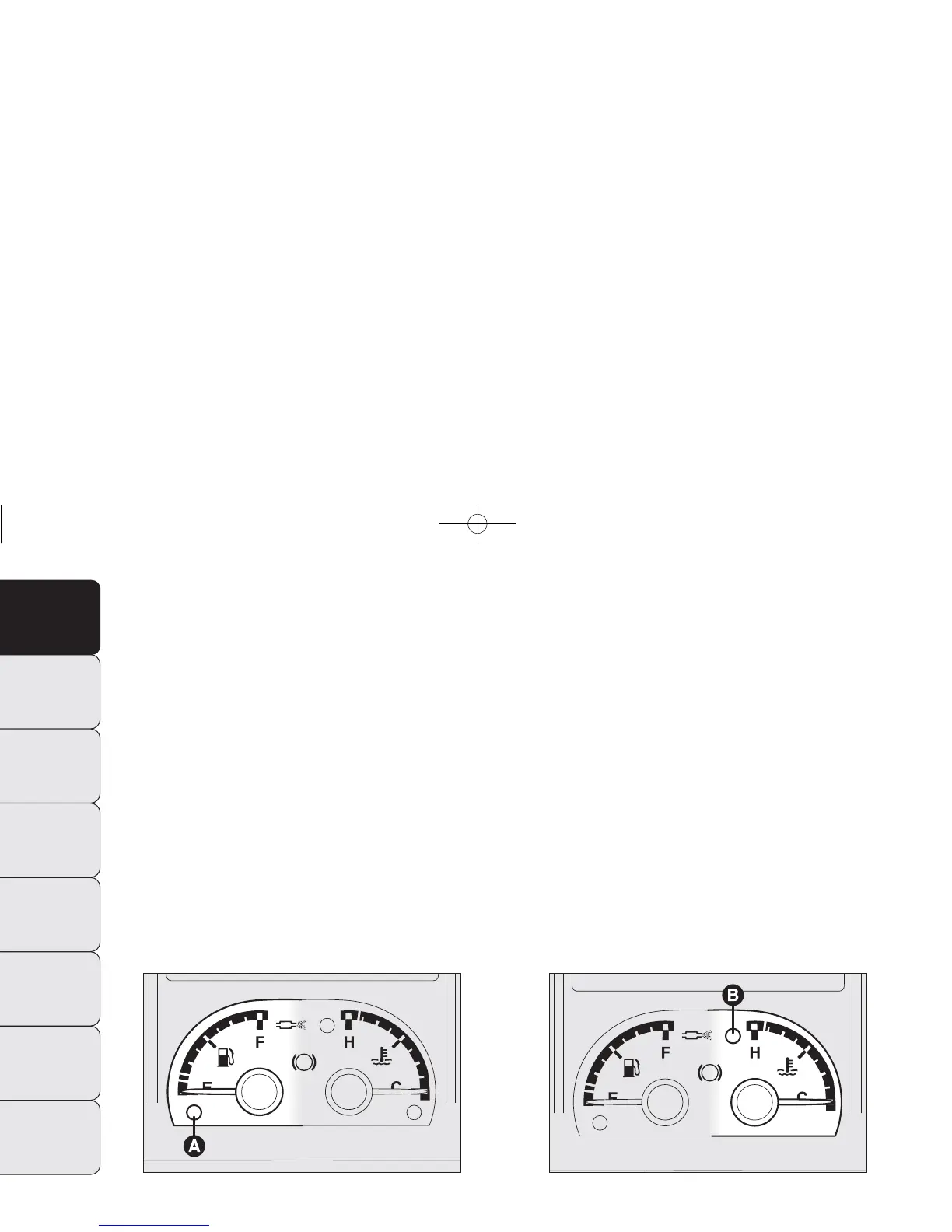

fig. 14
F0N0015m
fig. 15
ENGINE COOLANT TEMPERATURE
GAUGE fig. 15
This shows the temperature of the engine coolant fluid
and starts working when the fluid temperature exceeds
approx. 50°C.
Under normal conditions, the needle should hover around
the middle of the scale according to the working condi-
tions of the vehicle.
C Low engine coolant temperature.
H High engine coolant temperature.
Warning light B may light up (and a message on the mul-
tifunction display may appear in certain versions) to indi-
cate that the coolant temperature is too high; in this case,
stop the engine and contact the Fiat Dealership.
FUEL LEVEL GAUGE Fig. 14
This shows the amount of fuel left in the fuel tank.
E tank empty.
F tank full (see the instructions provided in paragraph
“Vehicle refuelling” in this section).
The warning light A coming on indicates that there are
about 10-12 litres of fuel remaining in the tank (depending
on the version). Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could damage the cata-
lyst.
IMPORTANT The needle will point to E and warning light
A will blink to indicate a fault in the system. Contact a Fiat
Dealership to have the system checked.
IMPORTANT It is not advisable to start the additional
heater (Webasto) when fuel is on reserve.
