DASHBOARD AND CONTROLS
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.

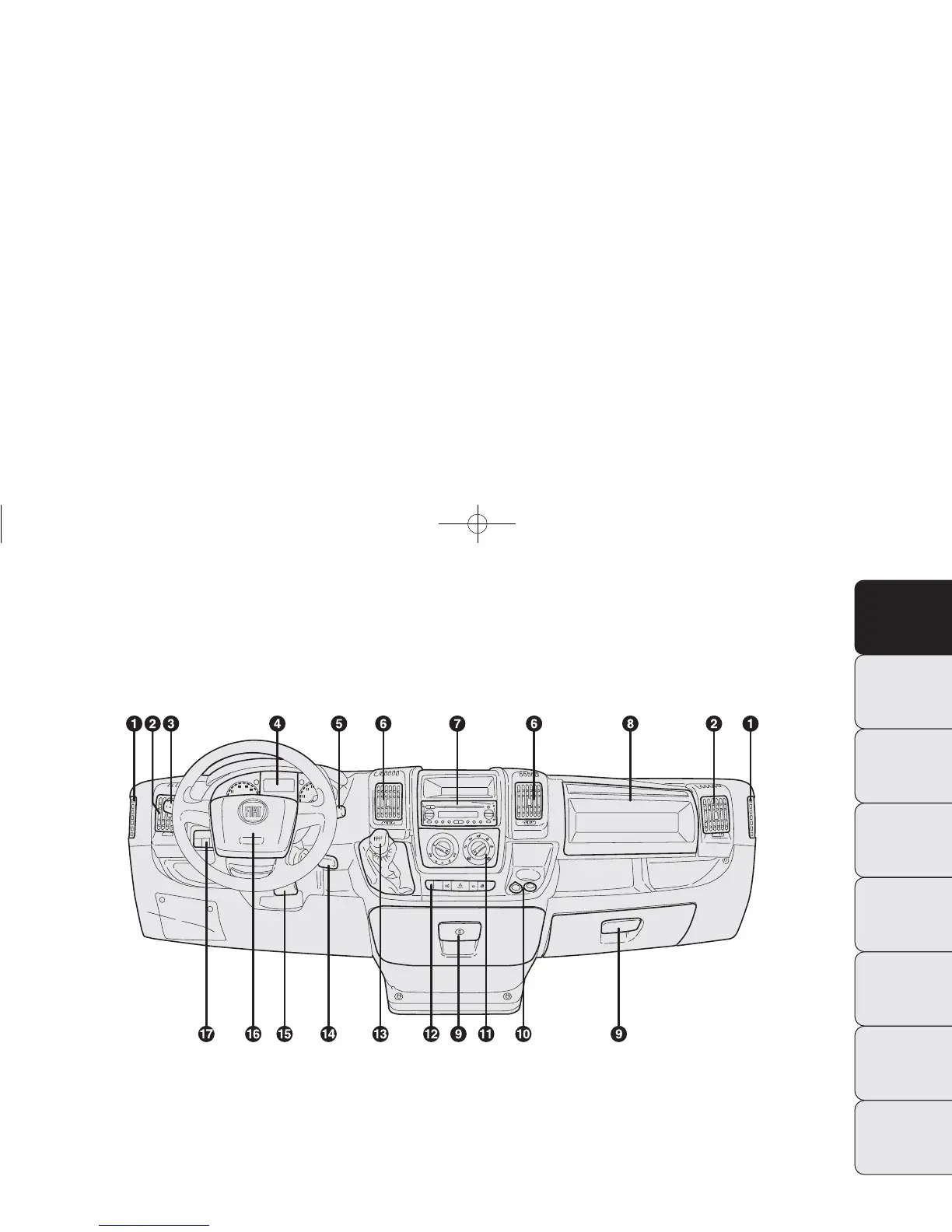

1. Fixed side air – vents – 2. Adjustable side air vents – 3. Left steering column stalk: external lights – 4. Instrument and
warning light panel – 5. Right steering column stalk: windscreen wiper controls, rear window wiper, trip computer
–
6. Adjustable central air vents – 7. Car radio (for versions/markets, where provided) – 8. Passenger side glove com-
partment/front air bag (for versions/markets, where provided) – 9. glove compartment – 10. Cigar lighter/12 V socket
– 11. HVAC controls – 12. Controls on dashboard – 13. Gear lever – 14. Ignition device – 15. Steering wheel adjust-
ment lever – 16. Driver side front airbag – 17. Control plate: lamp/headlamp alignment adjustment/digital display/
multifunction display.
F0N0320m
fig. 1
