Fiat Ducato - Replacing Exterior Bulbs; Front Light Clusters

F0N0079m
fig. 174
F0N0080m
fig. 175
To replace the dipped beam/side light bulb, remove plug
B-fig. 175.
To replace the direction indicator bulb, remove bulb hold-
er C-fig. 175.
After replacement, refit the covers correctly, ensuring that
they are locked in place.
SIDE LIGHTS fig. 176
To change the bulb, proceed as follows:
❒ remove protection cover B-fig. 175 by turning anti-
clockwise;
❒ remove snap-fitted bulb holder A, remove the bulb B
and replace it;
❒ refit the snap-fitted bulb holder A;
❒ refit protective cover/bulb holder B-fig. 175 by turning
it clockwise and locking it properly.
REPLACING EXTERIOR BULBS
For the type of bulb and power rating, see “When need-
ing to change a bulb”.

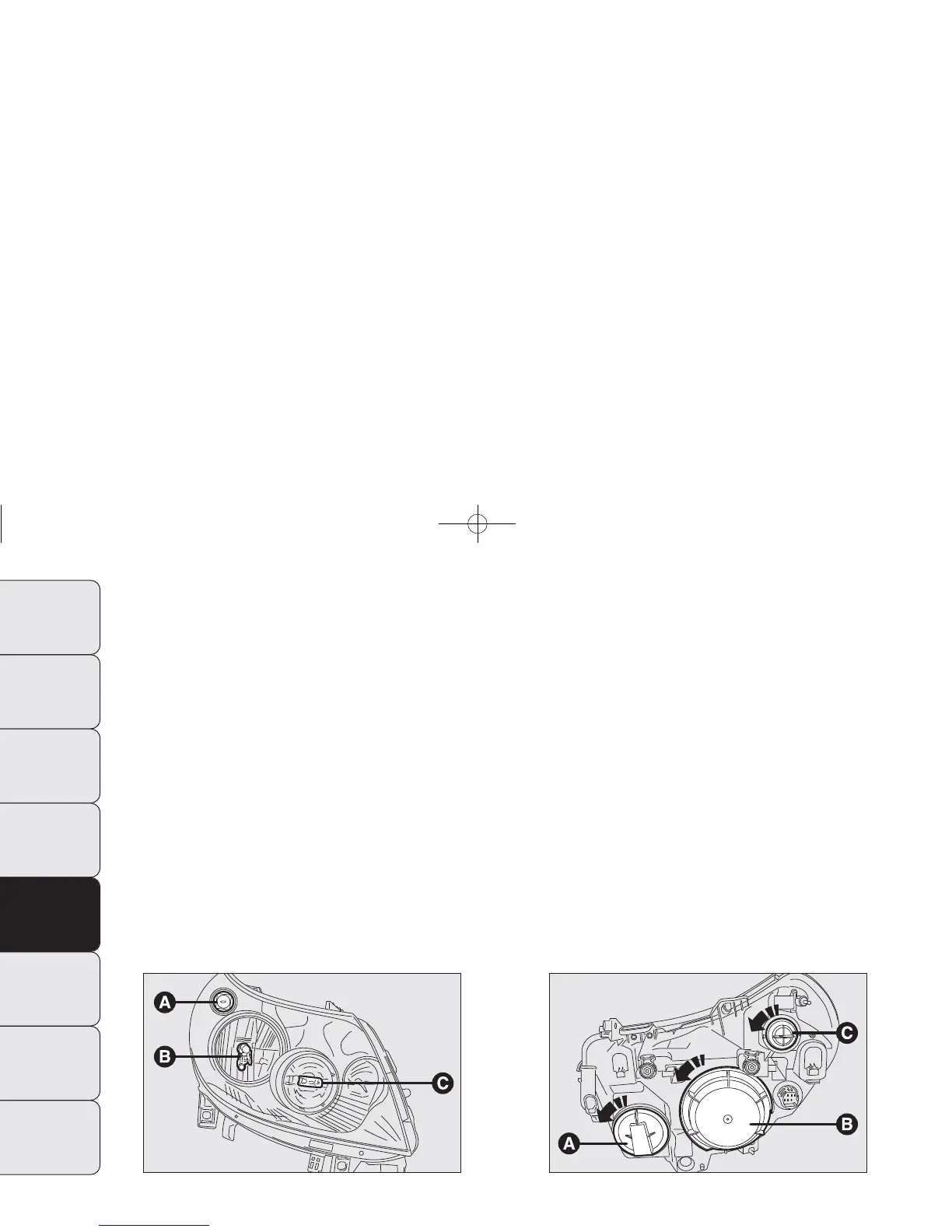

FRONT LIGHT CLUSTERS fig. 174
The front light clusters contain side lights, dipped beam,
main beam and direction indicator bulbs.
The bulbs are arranged inside the light cluster as follows:
A direction indicators
B side lights/dipped beams (double light)
C main beam headlights
To replace the main beam bulb, remove cap A-fig. 175.
