warn anybody nearby that the vehicle is about to be lift-
ed. They must stay clear and not touch the vehicle until
it is back on the ground. Lift the vehicle.
❒
indicate that the vehicle has broken down using the de-
vices required by the regulations in the current coun-
try (e.g. warning triangle, hazard lights etc.);
❒
take the extension arm and the wrench from the tool
kit under the passenger seat (see “Compartment under
front passenger seat” in the “Dashboard and Controls”
section);
❒
for versions with alloy rims, remove the press-fitted hub
cap;
❒
back off the bolts on the wheel to be replaced by one
turn;
❒
turn the wheel to extend the jack partly;
❒

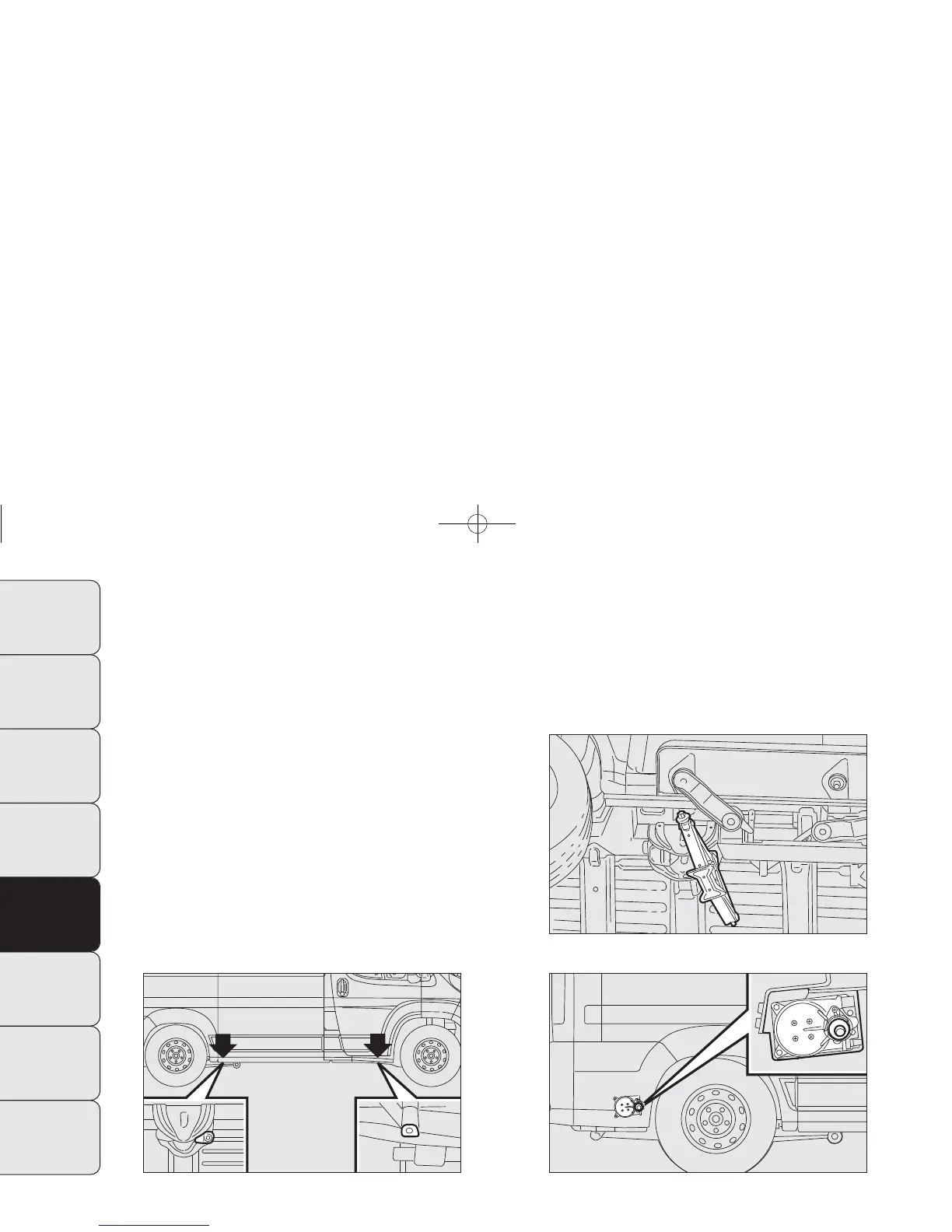

arrange the jack near the lift support closest to the
wheel to be replaced at the points shown in fig. 154. For
short wheelbase versions with retractable footboard,
the jack must be positioned at the lift point shown in
fig. 155 aligned (45°) so that it does not interfere with
the retractable footboard;
