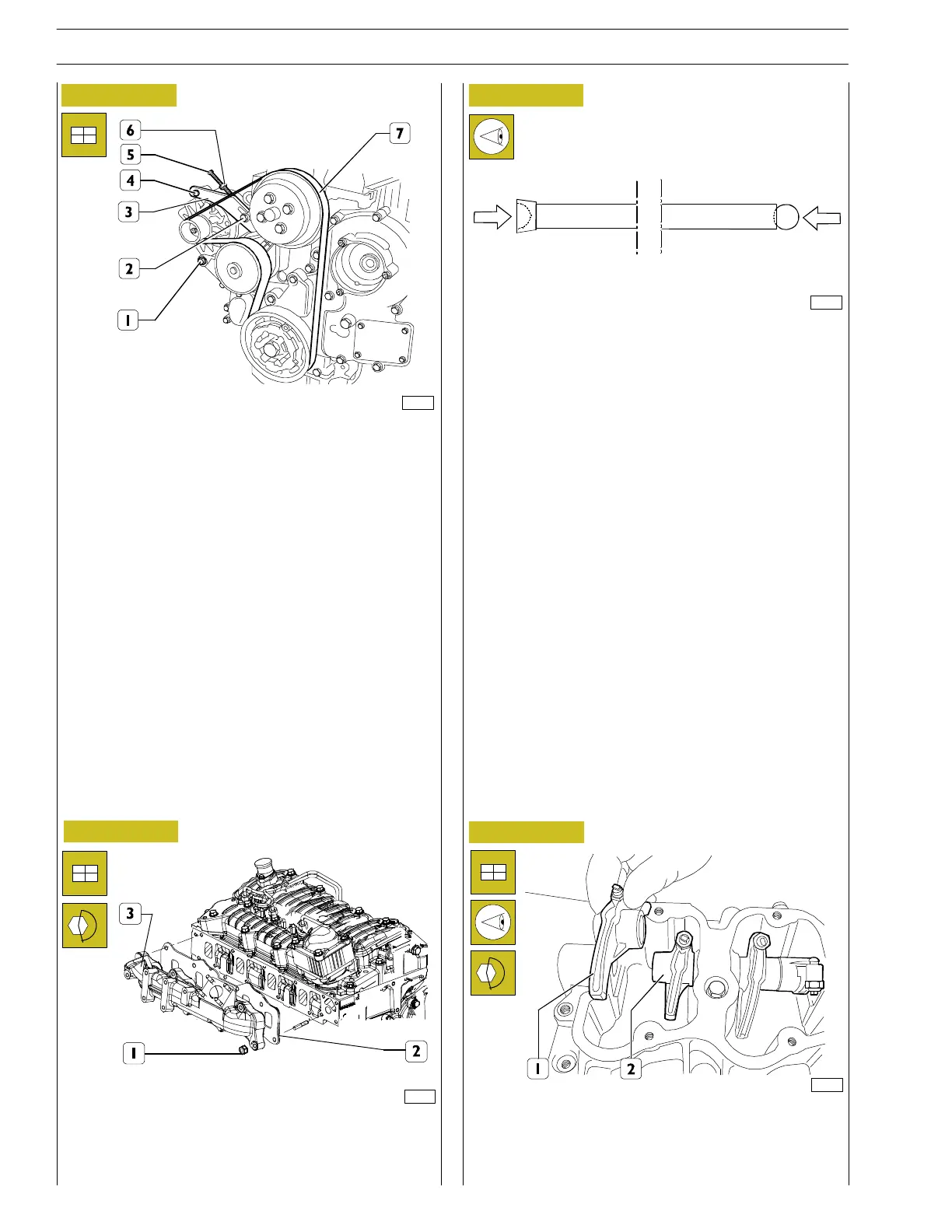

Figure 45
Figure 46
- Fit the rocker arm positioning the equalizer couples: the
suction equalizer first (short rod) and then the exhaust
equalizer (long rod) (2).
- Tighten the fastening screw (1).
Before reassembly, check that the rocker arm rods must not
be deformed; there must be no trace of wear or seizure on
the spherical housings of th e rocker arm adjusting screws as
well as on the tappets (pointers); otherwise these parts must
be replaced. The suction valve rods are identical and
therefor e interchangeable.
- Fit the control rods in their housing.
Figure 47
127697
- Fit the drive belt (7) on the pulley and the gu ide rollers.
- Tension drive belt (7) tightening screw (5) until screw (2)
reaches the end of the channel in which bracket (3) is
seated. Tighten nut (6) and screw (1).
- Tighten the screw (4) and the screw nut (1) fastening the
alternator to the support.
Figure 48
- Fit the exhaust collec tor (3) with a new gasket (2) and
tighten the fastening screws (1) to the prescribed torque
setting.
122432
122587
20
SECTION 3 - INDUSTRIAL APPLICATION
F32 SERIES
Base - April 2009 Prin t P2D 32F005 E
