190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 7-6

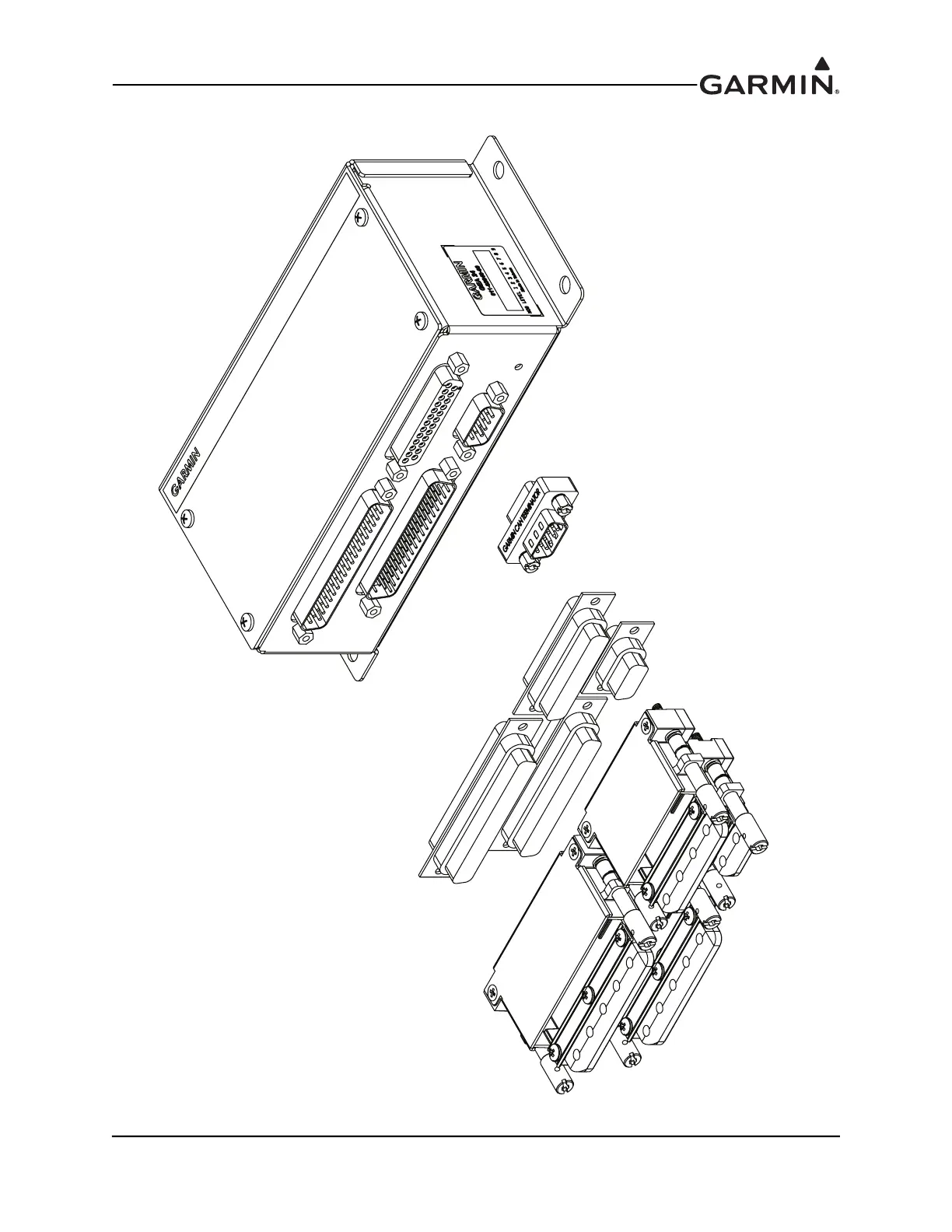

Figure 7-4 GEA 24 Assembly Drawing (with CAN terminator)
GEA 24 CONNECTOR KIT
011-02886-00
GEA 24 UNIT
011-02848-00
(OPTIONAL)
GEA 24 CAN TERMINATION KIT
011-02887-00
IMPORTANT NOTE:
DEPENDING ON HOW THE SYSTEM IS PHYSICALLY WIRED, THIS
ADAPTER MAY OR MAY NOT BE NEEDED IN THE
INSTALLATION. THE G3X CAN BUS MUST BE TERMINATED AT
ONLY THE TWO MOST EXTREME POINTS ON THE CAN
BACKBONE. REFER TO THE G3X INSTALL MANUAL FOR USAGE
OF THIS PART AND SPECIFIC GUIDANCE OF G3X CAN BUS
WIRING.
