190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 20-27
20.7.2 Non-Structural Installation to Glareshield

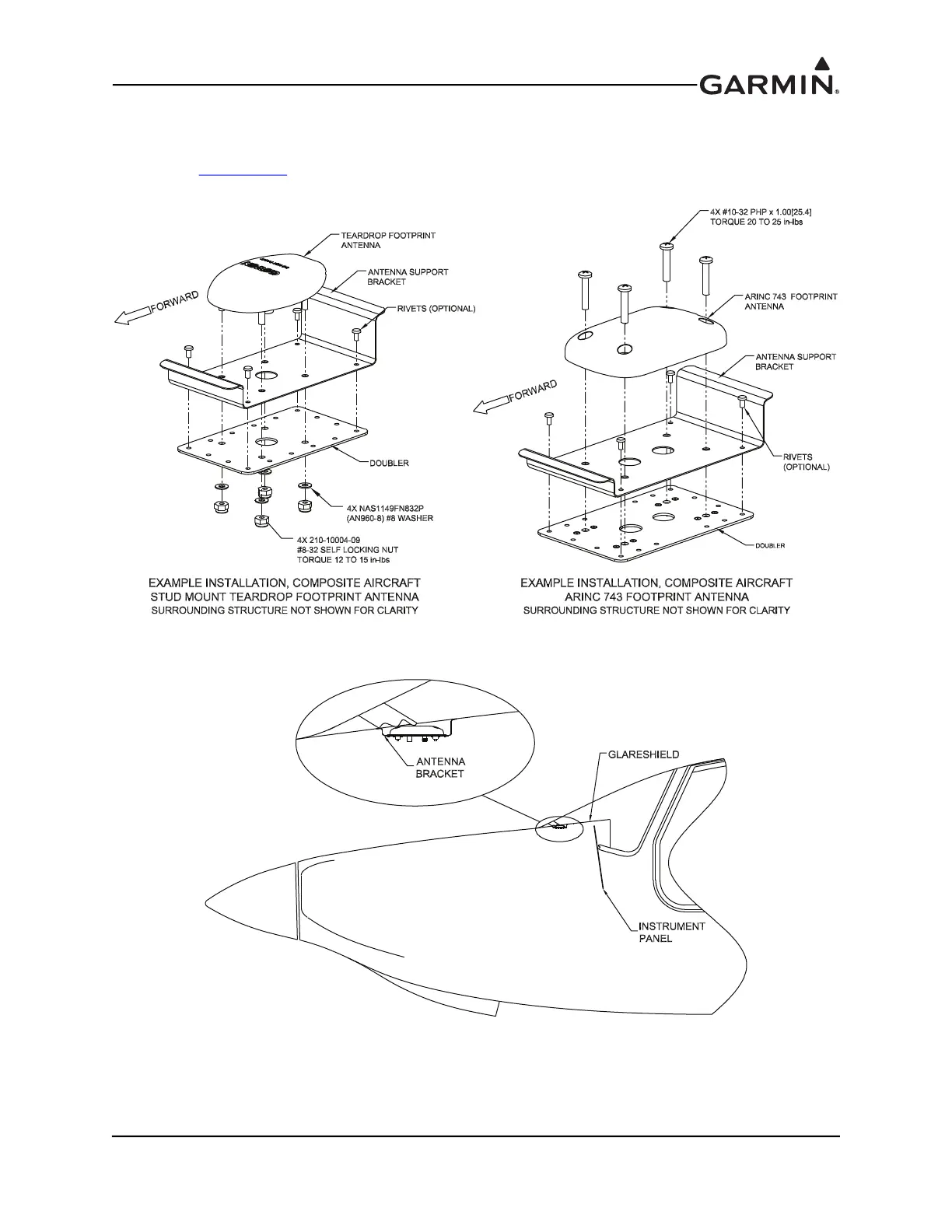

Figure 20-26 shows an example of a bracket created to support an antenna mounted on the underside of the
glare shield. Figure 20-27
shows the non-structural mounting of the antenna under the glareshield, with the
bracket assembly shown in Figure 20-26.
Figure 20-26 Example Bracket Antenna Mounting Under Glareshield
Figure 20-27 Example Non-structural Antenna Mounting Under Glareshield
