190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 20-18

20.6.3 Reference Figures

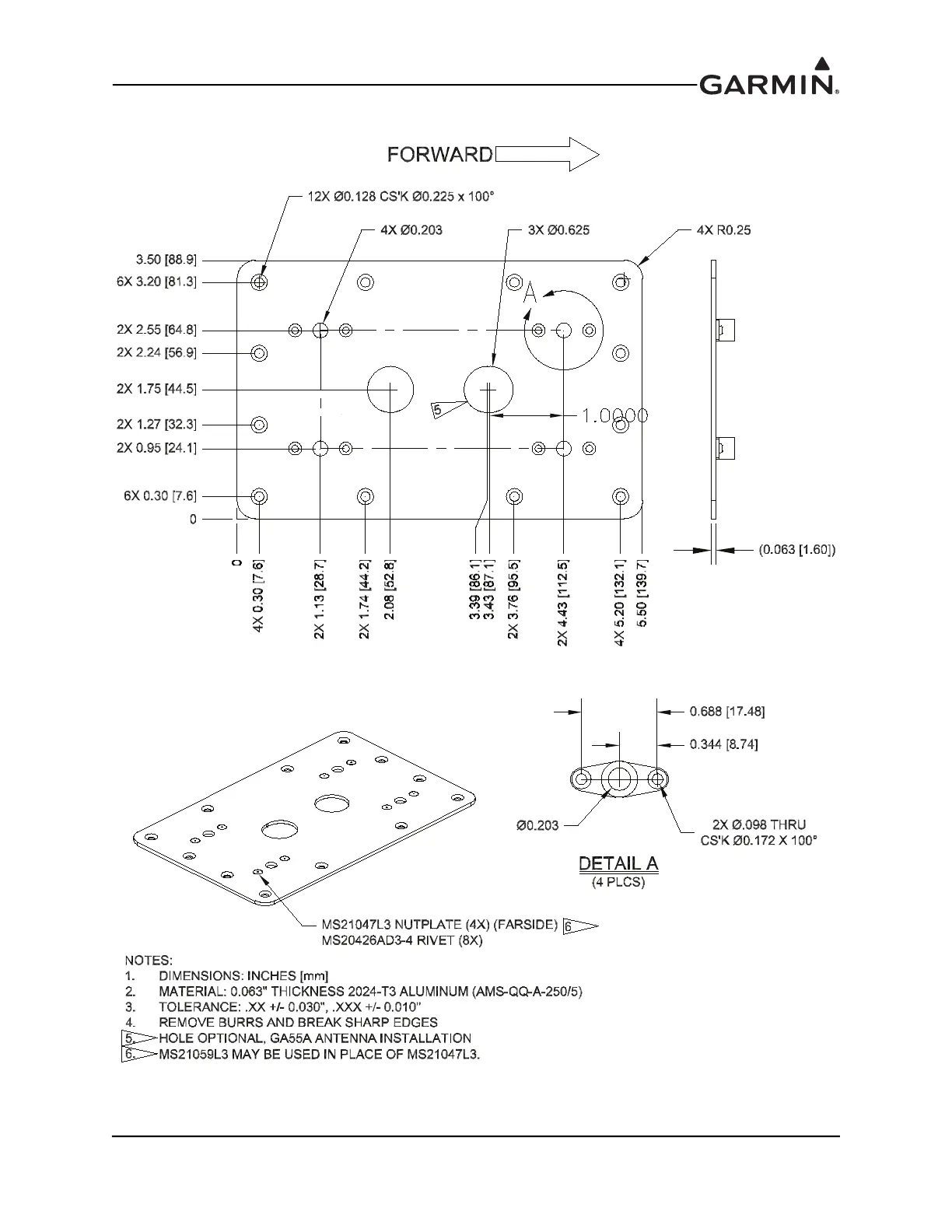

Figure 20-14 Doubler Design, ARINC 743 Footprint Antenna, Skin Thickness 0.032" to 0.049"
