Garmin G3X - 22.2.2 Backshell Assembly (refer to Figure 22-1)

190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 22-3

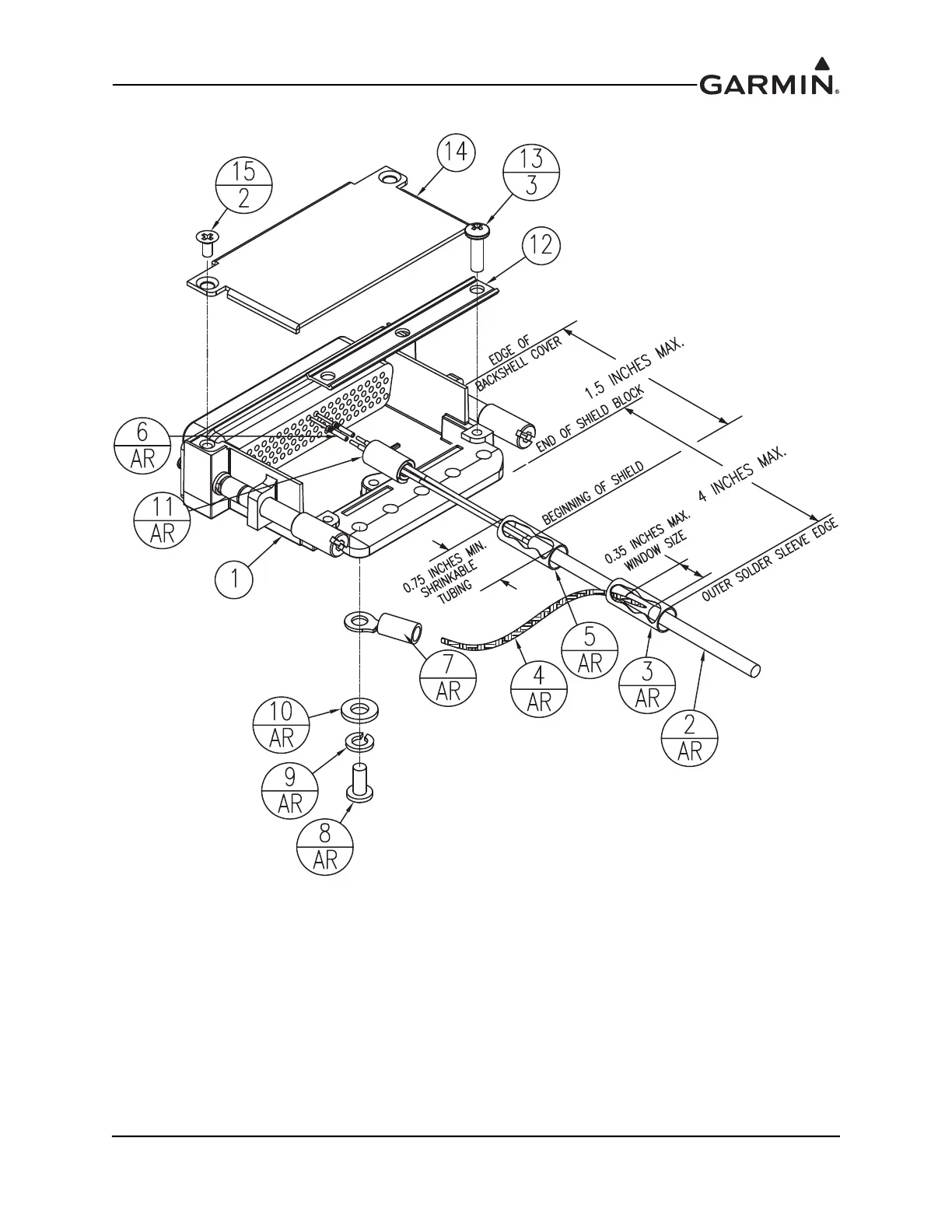

Figure 22-1 Shield Install onto a Jackscrew Backshell (78 pin example)
22.2.2 Backshell Assembly (refer to Figure 22-1)
1. Insert the crimped wire harness contacts (6) into the D-sub connector.
2. Wrap the cable bundle with silicone fusion tape (11) where the strain relief clamps the bundle.
3. Place the smooth side of the backshell strain relief clamp (12) across the cable bundle.
4. Secure strain relief with three 4-40 x 0.375 pan head screws (13).
5. Attach the cover (14) to the backshell using the supplied screws (15).
